The TSB43AA22PDT is a high-performance integrated circuit from Texas Instruments designed for applications requiring IEEE 1394 (FireWire) communication capabilities. This device is part of Texas Instrument's extensive range of interface solutions, catering to the needs of high-speed serial bus protocols.

Key Features

• IEEE 1394-1995 Compliant: The TSB43AA22PDT adheres to the IEEE 1394-1995 standard for high-speed serial bus architecture, ensuring compatibility with a wide range of FireWire devices and systems.
• Two Cable Ports: Equipped with two cable ports, it can support a 100/200/400 Mbps transfer rate, making it versatile for various data-intensive applications.
• Integrated PHY and Link Layers: This integrated device includes both the physical (PHY) layer and the link layer, which are necessary for IEEE 1394 data transmission, reducing external component requirements and simplifying design.
• Deep FIFOs: To manage data flow efficiently, the TSB43AA22PDT features deep FIFOs (First In, First Out memory queues) for isochronous and asynchronous data transfers.
• Low Power Consumption: Designed with power efficiency in mind, the device operates with low power consumption, making it suitable for portable and power-sensitive applications.

Applications

The TSB43AA22PDT is suitable for a wide range of applications, including but not limited to:

• Digital video camcorders and VCRs
• External storage devices
• Printers and scanners
• Digital cameras
• PC peripherals
• Consumer electronics

Technical Specifications

At the core of the TSB43AA22PDT are several technical specifications that define its performance:

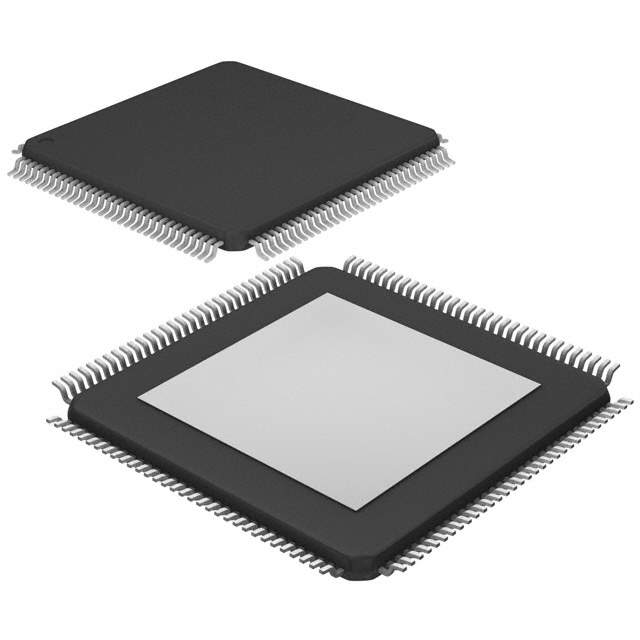

• Package Type: 80-TQFP
• Operating Temperature Range: -40°C to 85°C
• Supply Voltage: 3.3V ± 0.3V
• Power Down and Sleep Modes
• Programmable Arbiter

Conclusion

The TSB43AA22PDT from Texas Instruments represents a reliable and efficient solution for designers looking to integrate IEEE 1394 capabilities into their products. With its high-speed data transfer rates, integrated PHY and link layers, and low power consumption, this device is an excellent choice for a multitude of modern multimedia and storage applications.
