The TS5A22364YZPR is a high-performance, dual single-pole/double-throw (SPDT) analog switch designed by Texas Instruments. This device is tailored for applications that require the switching of analog signals with low distortion and high linearity. The TS5A22364YZPR is part of TI's extensive range of analog switch integrated circuits, which are known for their reliability and versatility.

Key Features

• Wide Supply Range: The switch operates over a broad power supply range of 2.25 V to 5.5 V, making it suitable for various applications that require different voltage levels.
• Low On-State Resistance (RON): With a typical RON of just 0.8 ohms, the TS5A22364YZPR ensures minimal signal distortion and power loss during operation.
• Low Crosstalk and Off-Isolation: This device provides excellent signal integrity with low crosstalk and high off-isolation, which is crucial for maintaining the fidelity of the signal paths in complex electronic systems.
• Bidirectional Signal Flow: Signals can flow in both directions through the switch, offering greater design flexibility.
• 1.8 V Logic Compatible: The control logic is compatible with 1.8 V, allowing for seamless integration with modern low-voltage logic circuitry.

Applications

The TS5A22364YZPR is designed for a wide range of applications, including but not limited to:

• Cellular phones
• PDAs
• Portable instrumentation
• Data acquisition systems
• Signal routing

Quality and Packaging

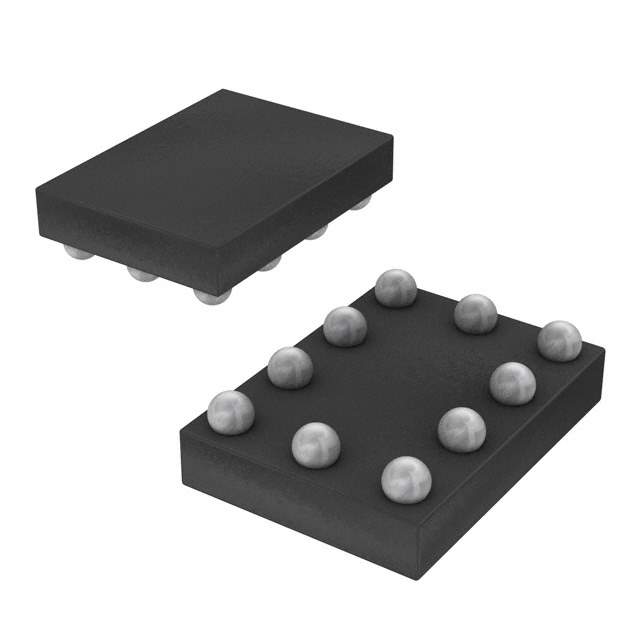

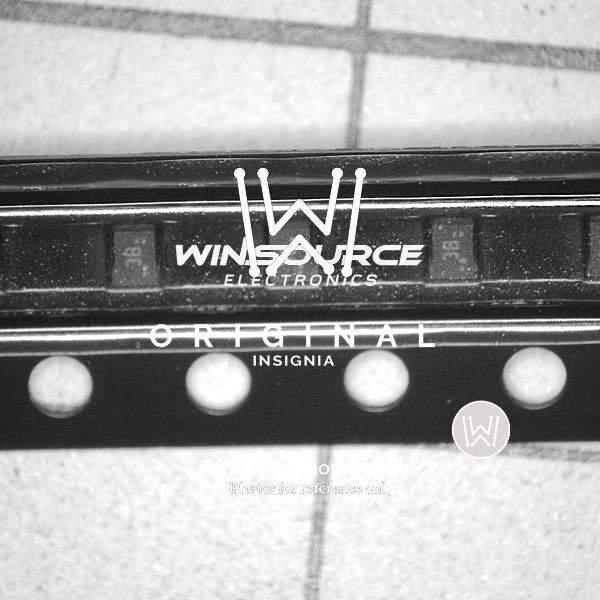

Ensuring high standards of quality, the TS5A22364YZPR is available in a compact 10-pin DSBGA package. The product is provided in tape and reel packaging, which facilitates efficient handling and manufacturing processes. It is also RoHS compliant, ensuring adherence to environmental standards and regulations.

Conclusion

With its robust design, low power consumption, and high switching speeds, the TS5A22364YZPR from Texas Instruments stands out as an exceptional choice for designers looking to optimize their analog signal routing with precision and efficiency. Its small form factor and compatibility with low-voltage logic make it an ideal component for the next generation of compact and power-conscious electronic devices.
