The TPS82672SIPR is a highly sophisticated, fully integrated power management module designed by Texas Instruments (TI), a global semiconductor company known for its innovative and reliable products. This power solution is particularly tailored for space-constrained and power-sensitive applications, making it an ideal choice for portable and mobile devices.

Key Features

• High Efficiency: The TPS82672SIPR boasts a high-efficiency step-down converter with up to 95% efficiency, ensuring minimal power loss during operation and extending battery life in portable devices.

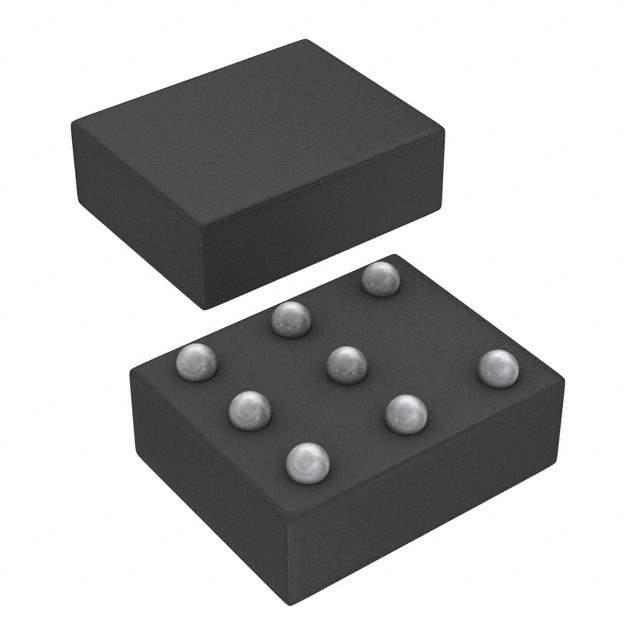

• MicroSiP™ Package: TI's proprietary MicroSiP™ packaging technology enables a compact footprint, with a 2.3mm x 2.9mm x 1.0mm size, making it perfect for space-limited applications.
• Adjustable Output Voltage: The output voltage of this module is adjustable, providing design flexibility to meet various application requirements.
• Low Quiescent Current: It features a low quiescent current, which is crucial for battery-powered devices, as it helps reduce standby power consumption.
• Integrated Inductor: The inclusion of an integrated inductor simplifies design and reduces external component count, thus saving on PCB space and overall system cost.

Applications

The TPS82672SIPR is suitable for a wide range of applications, including but not limited to:

• Smartphones and Tablets
• Wireless Headsets and Earbuds
• Wearable Technology
• Portable Medical Devices
• Internet of Things (IoT) Devices

Technical Specifications

The device operates over a wide input voltage range from 2.3V to 4.8V and delivers a selectable output voltage that can be configured via an external resistor. It also features a load capacity of up to 600mA, making it capable of powering a diverse array of ICs and portable devices. Additionally, the TPS82672SIPR is designed with advanced power management features, such as power-save mode, which enhances efficiency at light loads, and a bypass mode for noise-sensitive applications.

Conclusion

With its high efficiency, compact design, and versatile performance characteristics, the TPS82672SIPR from Texas Instruments stands out as a top-tier power management solution for designers looking to optimize their power-sensitive applications. Its integration of key power components and user-friendly adjustability make it an excellent choice for a multitude of modern electronic devices.
