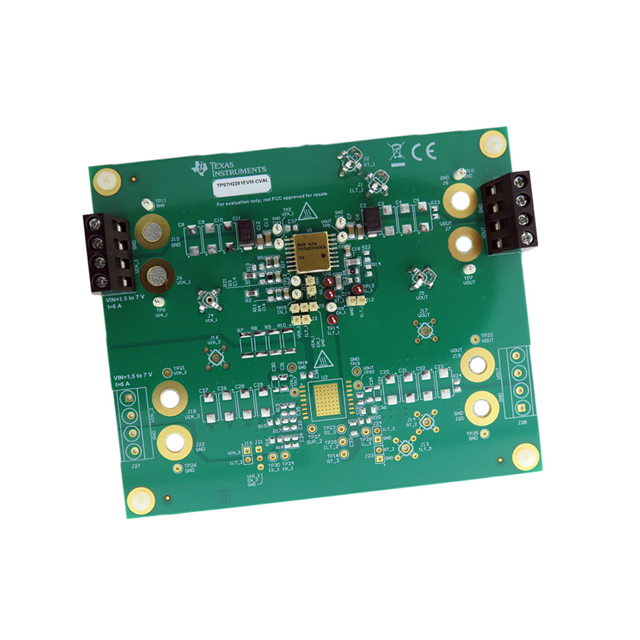

Introducing the TPS7H2201EVM-CVAL Evaluation Module from Texas Instruments

The TPS7H2201EVM-CVAL is a state-of-the-art evaluation module designed by Texas Instruments to provide engineers with a comprehensive platform for testing and analyzing the performance of the TPS7H2201-SP radiation-hardened adjustable positive linear voltage regulator. This product is specifically tailored for space and harsh environment applications, offering exceptional reliability and robustness.

At the heart of the TPS7H2201EVM-CVAL is the TPS7H2201-SP regulator IC, which is capable of delivering up to 1.5A of output current. The device features an adjustable output voltage range from 1.2V to 12V, which can be set using external resistors. This flexibility makes it an ideal solution for a wide range of power supply configurations in space-grade systems.

The evaluation module comes equipped with a variety of test points and jumpers. These allow for easy measurement of the regulator's key parameters, such as input and output voltage, output current, and dropout voltage. Additionally, the EVM includes options for enabling and disabling the regulator, as well as setting the under-voltage lockout (UVLO) threshold, making it a versatile tool for thorough testing.

Built with a focus on reliability, the TPS7H2201EVM-CVAL is designed to withstand the rigors of space applications. The regulator IC itself is characterized for enhanced product life under radiation. It is immune to Single Event Latch-up (SEL) up to a Linear Energy Transfer (LET) threshold of 86 MeV-cm²/mg and has been tested for Total Ionizing Dose (TID) up to 100 krad (Si).

For engineers working on satellite systems, space vehicles, or other high-reliability applications, the TPS7H2201EVM-CVAL offers a convenient and practical way to evaluate the TPS7H2201-SP regulator. With its robust design and comprehensive feature set, this evaluation module is an essential tool for developing power solutions that can withstand the extreme conditions of space and other challenging environments.

Whether you are designing power supply circuits for communication satellites, space exploration missions, or high-altitude avionics, the TPS7H2201EVM-CVAL from Texas Instruments will help ensure that your systems operate with the highest levels of performance and reliability.
