Product Overview: TPS7A8001DRBT

The TPS7A8001DRBT is a high-performance, low-dropout linear regulator (LDO) brought to you by Texas Instruments, designed to deliver outstanding regulation and noise performance in a variety of applications. This component is characterized by its high accuracy, low dropout voltage, and low quiescent current, making it an ideal choice for sensitive analog circuits, RF applications, and post-regulation for switching power supplies.

Key Features

• Output Voltage Range: The device provides an adjustable output voltage range from 0.8V to 3.95V, which can be set using external resistors, thereby offering flexibility for various design requirements.
• High Accuracy: With an output voltage accuracy of 1% over the full temperature range, the TPS7A8001DRBT ensures precise voltage delivery for critical applications.
• Low Dropout Voltage: The LDO features a low dropout voltage, typically 280 mV at full load (1A), which enhances efficiency and allows operation close to the input voltage.
• Low Noise: With only 15µVRMS of output voltage noise without a noise reduction capacitor, this device is perfect for noise-sensitive circuits such as precision analog-to-digital converters (ADCs), voltage-controlled oscillators (VCOs), and sensitive RF supply lines.
• Stable with Low ESR Capacitors: The TPS7A8001DRBT remains stable with ceramic output capacitors as low as 10µF, which minimizes the size and cost of the capacitors needed.
• Thermal and Overcurrent Protection: The device includes built-in thermal shutdown and overcurrent protection features to safeguard the LDO and the downstream components against excessive temperature and current conditions.
• Power Good (PG) Output: This feature provides a power-good signal when the output voltage reaches a stable operating condition, which is useful for power sequencing in complex systems.

Applications

The TPS7A8001DRBT is versatile in its applications, suitable for powering sensitive analog ICs, RF components, and post-regulation for power supplies in:

• Telecommunications
• Networking Equipment
• Industrial Control Systems
• Portable and Battery-Powered Electronics

Package and Quality

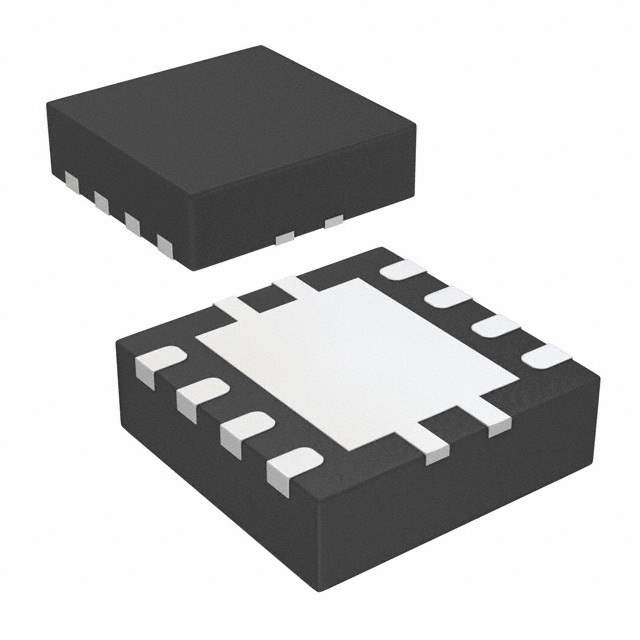

Offered in a compact 3mm x 3mm SON-8 package, the TPS7A8001DRBT is designed for space-constrained applications. It is also supported by Texas Instruments' commitment to quality and reliability, ensuring a dependable solution for your power regulation needs.
