The TPS61195EVM-460 from Texas Instruments is a comprehensive evaluation module designed for testing and performance analysis of the TPS61195 high-voltage LED driver with PWM dimming. This advanced evaluation module is an essential tool for engineers and designers who are looking to implement the TPS61195 in their LED lighting solutions.

Key Features

• High-Efficiency LED Driver: The TPS61195 is a high-efficiency, boost converter LED driver that provides a constant current output to drive high-brightness LEDs.
• PWM Dimming Capability: The module supports Pulse Width Modulation (PWM) dimming, allowing precise control over the brightness of the connected LEDs.
• Wide Input Voltage Range: The EVM operates over a wide input voltage range from 4.5 V to 18 V, making it suitable for a variety of power supplies and applications.
• Adjustable Output Voltage: The output voltage is adjustable, ensuring compatibility with a range of LED configurations and voltages.
• Thermal Protection: The TPS61195EVM-460 includes thermal shutdown protection to safeguard the module against overheating.
• Easy-to-Use: An intuitive layout and clear markings make the EVM easy to set up and use, even for those who are not familiar with power electronics.

Applications

The TPS61195EVM-460 is ideal for evaluating the TPS61195 LED driver in various applications, including:

• Automotive lighting
• General illumination
• Industrial and commercial lighting systems
• Backlighting for LCD displays

What's Included

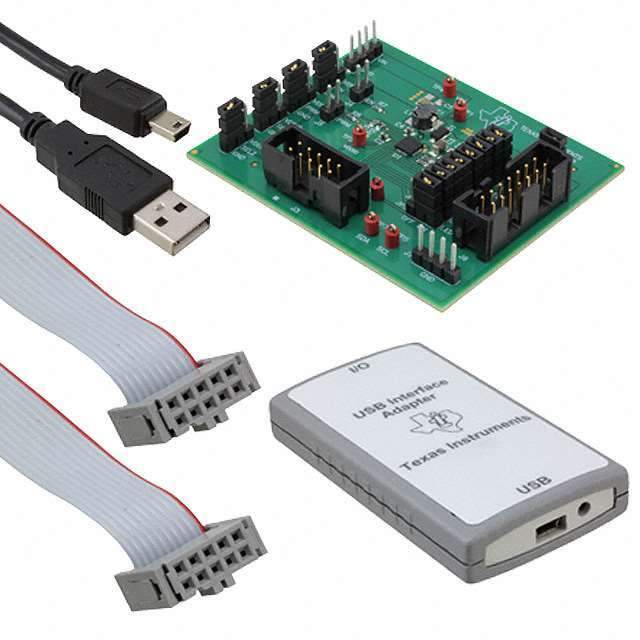

The evaluation module package includes the TPS61195EVM-460 board, a comprehensive user guide, and design files. This allows for immediate setup and experimentation, providing a hands-on approach to learning the functionalities and benefits of the TPS61195 LED driver.

Support and Resources

Users can access extensive support and resources from Texas Instruments, including detailed datasheets, application notes, and online forums. This ensures that users have all the information and help they need to successfully integrate the TPS61195 into their designs.
