Overview of Texas Instruments TPS60250RTER

The Texas Instruments TPS60250RTER is a high-efficiency, charge pump-based, constant current LED driver designed to provide a reliable power solution for portable devices. This advanced driver IC is specifically engineered to enhance the performance of white LED backlights in single-cell Li-Ion powered devices such as smartphones, tablets, and other handheld electronics.

Key Features

• Input Voltage Range: The TPS60250RTER operates with an input voltage range of 2.7V to 5.5V, making it versatile for various battery technologies and configurations.
• Constant Current Drive: It provides a constant current output to drive up to six white LEDs in series, ensuring uniform brightness and enhancing the visual quality of the display.
• High Efficiency: The device utilizes a 1x/1.5x fractional charge pump to achieve high efficiency over the entire input voltage range, which is crucial for maximizing battery life in portable applications.
• Adjustable Brightness: Brightness control is facilitated through a single-wire digital interface, allowing for easy adjustment of the LED current to suit different lighting conditions or to save power.

Protection Features

• Thermal Shutdown: The TPS60250RTER incorporates thermal shutdown protection to safeguard the device and the LEDs from overheating, thereby ensuring a longer lifespan for the components.
• Overvoltage Protection: An integrated overvoltage protection circuit prevents damage to the LEDs in the event of an input voltage surge.

Package and Applications

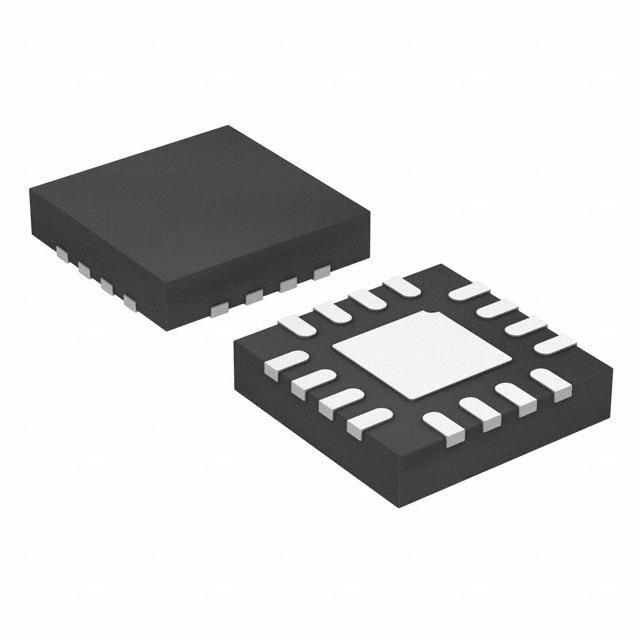

The TPS60250RTER is available in a compact, 16-pin WQFN package with a 3mm x 3mm footprint, which is ideal for space-constrained applications. Its small size and high integration level make it an excellent choice for driving LED backlights in portable devices where efficiency and battery life are critical. The device's robust feature set ensures consistent performance and reliability, making it a preferred solution for manufacturers seeking to enhance their product's display quality.

With its combination of efficiency, adjustability, and protection features, the Texas Instruments TPS60250RTER stands out as a sophisticated power management component for next-generation portable electronics.
