The TPS2359RHHTG4 is a robust, feature-rich hot swap controller designed by Texas Instruments to facilitate safe insertion and removal of circuit boards from live backplanes. This integrated circuit is engineered to manage the inrush current during board insertion, preventing glitches on the power supply rail and protecting the electronic components from damage.

Key Features

• Advanced Current Management: The device includes precise current sensing and limiting capabilities to ensure that the inrush current is controlled during the hot-swap event. This helps in maintaining the stability of the system power rail.
• Programmable Soft Start: The TPS2359RHHTG4 offers a programmable soft-start function that allows for a controlled ramp-up of the output voltage, minimizing stress on the power supply and the electronic components.
• Voltage Monitoring: With built-in under-voltage and over-voltage monitoring, the device ensures that the power supply remains within specified thresholds, enhancing system reliability.
• Power Good Output: A "power good" output signal is provided to indicate when the output voltage is within the acceptable range, which is useful for sequencing and system monitoring.
• High-Temperature Operation: The device is designed to operate reliably in high-temperature environments, making it suitable for industrial and other demanding applications.

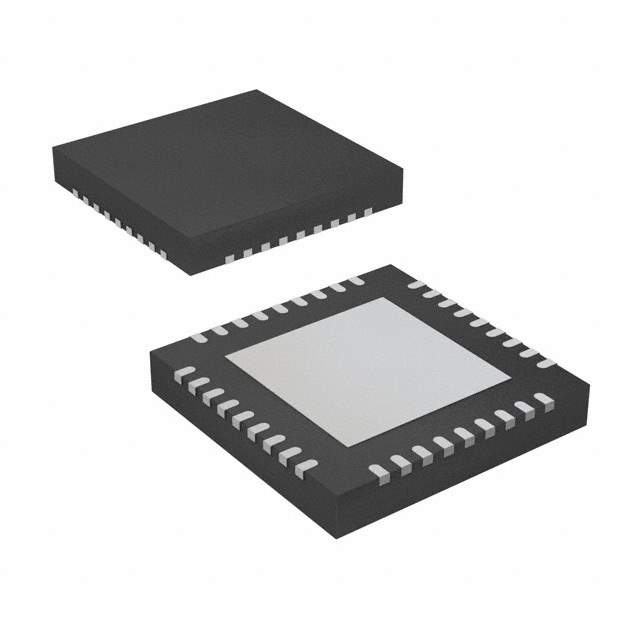

• Space-Saving Design: The TPS2359RHHTG4 comes in a compact 36-pin QFN package, which saves valuable board space and is ideal for dense circuit designs.

Applications

The TPS2359RHHTG4 is versatile and can be used in a wide range of applications, including:

• Server and Telecom Hot Swap Applications
• Network Routers and Switches
• Industrial Equipment
• RAID Systems
• Blade Servers

Quality and Reliability

As with all Texas Instruments products, the TPS2359RHHTG4 is manufactured to high standards of quality and reliability. This hot swap controller is a reliable solution for managing power distribution in complex electronic systems, ensuring both safety and efficiency in operation.
