Overview of TPS22968NQDMGRQ1

The TPS22968NQDMGRQ1 is a high-performance, feature-rich integrated load switch developed by Texas Instruments. Designed to effectively manage power distribution, this device is a crucial component for automotive and industrial applications where efficient power control is essential.

Key Features

• Input Voltage Range: The switch operates over a wide input voltage range of 1.1 V to 5.5 V, making it versatile for various systems.
• Current Handling: It can handle up to 4 A of continuous current, ensuring reliable operation for high-load applications.
• Ultra-Low On-Resistance: The device boasts an ultra-low on-resistance (rON) of 16 mΩ at a VBIAS of 5 V, which minimizes power loss and improves efficiency.
• Quick Output Discharge: It includes a quick output discharge (QOD) feature that ensures the output is discharged rapidly when the switch is turned off, preventing any unwanted power residue in the system.
• Adjustable Rise Time: The TPS22968NQDMGRQ1 allows for an adjustable rise time to reduce inrush current, which can be beneficial in preventing system voltage droop during switch-on events.
• Thermal Shutdown Protection: The switch is equipped with thermal shutdown protection, which guards against overheating and potential damage to the system.

Applications

The TPS22968NQDMGRQ1 is ideal for a variety of applications, particularly in the automotive sector where robust power management is critical. It is commonly used in infotainment systems, GPS navigation units, and advanced driver assistance systems (ADAS). Additionally, it finds use in industrial control systems, solid-state drives (SSDs), and other power-sensitive applications.

Quality and Reliability

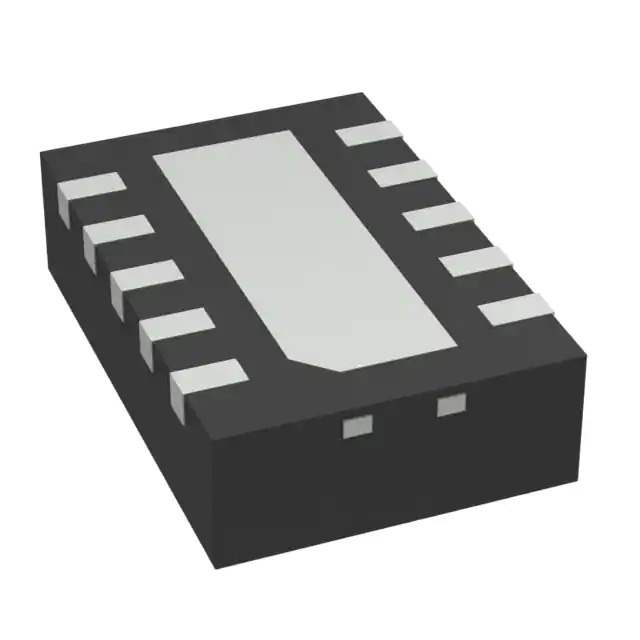

Texas Instruments ensures that the TPS22968NQDMGRQ1 meets stringent quality standards. It is AEC-Q100 qualified, which means it has passed rigorous testing for automotive-grade reliability. The device is also provided in a compact, space-saving 12-pin QFN package, which is highly suitable for space-constrained applications.

With its comprehensive set of features and reliable performance, the TPS22968NQDMGRQ1 from Texas Instruments stands out as an excellent choice for designers looking to enhance power management in their next-generation electronic systems.
