Overview of Texas Instruments TPS22966DPUR

The TPS22966DPUR from Texas Instruments is a state-of-the-art load switch that offers high-efficiency power distribution and management for various electronic applications. This compact and feature-rich device is designed to handle a maximum continuous current of up to 6A, making it an ideal solution for systems that require efficient power routing and control.

Key Features

• Input Voltage Range: The device operates over an input voltage range of 1.05V to 5.5V, which allows for versatile use in a wide array of power systems.
• Low On-Resistance: The TPS22966DPUR boasts an ultra-low on-resistance (RON) of typically 8.7mΩ at 5V, ensuring minimal voltage drop and power loss during operation.
• Quick Output Discharge: Equipped with an integrated quick output discharge transistor, it swiftly discharges the output capacitance when the switch is turned off, thereby preventing any unwanted power residue in the system.
• Adjustable Rise Time: It features an adjustable rise time to mitigate inrush current, which enhances system stability and extends the lifespan of the components.
• Under-Voltage Lockout (UVLO): This safety feature turns the switch off when the input voltage drops below a certain threshold, protecting the device and downstream components from undervoltage conditions.
• Over-Current Protection: The TPS22966DPUR is designed with built-in over-current protection, which prevents damage to the load switch and the powered device in the event of excessive current draw.

Applications

The versatility of the TPS22966DPUR makes it suitable for a broad range of applications, including but not limited to:

• Smartphones, Tablets, and Portable Electronics
• Enterprise Systems and Servers
• Power Distribution Networks
• Storage & Networking Systems
• Industrial and Automotive Applications

Quality and Reliability

Texas Instruments is renowned for its commitment to quality and reliability. The TPS22966DPUR is no exception, as it is designed and manufactured to meet the highest industry standards. Its robust design ensures reliable operation even in the most demanding environments, making it a trusted choice for designers and engineers alike.

Packaging and Availability

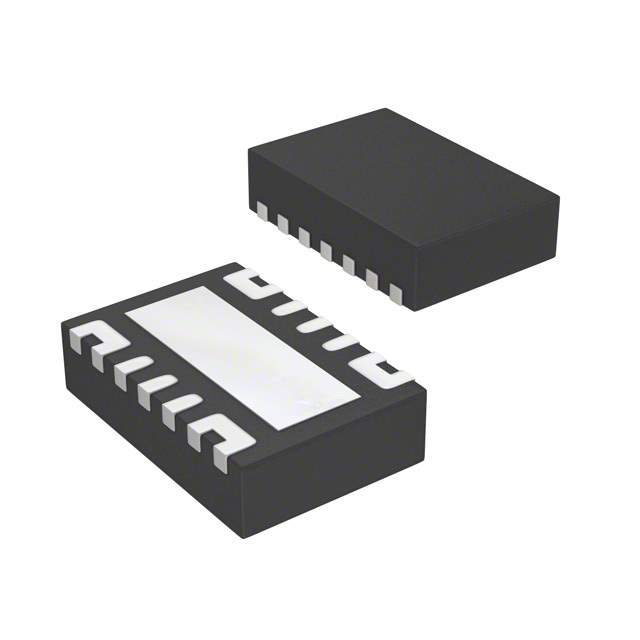

The TPS22966DPUR comes in a compact 14-pin WSON package, optimizing board space without compromising performance. It is available for order and can be sourced through Texas Instruments' official distributors and partners.
