Overview of Texas Instruments TPS22965DSGT

The TPS22965DSGT from Texas Instruments is a state-of-the-art load switch designed to provide a high-performance power management solution for a variety of applications. This compact device integrates multiple features to ensure efficient control and protection of power supplies in electronic circuits.

Key Features

• Input Voltage Range: The TPS22965DSGT operates over a wide input voltage range from 0.9V to 5.5V, making it suitable for a variety of low-voltage applications.
• Low On-Resistance: The device boasts an ultra-low on-resistance (R_ON) of just 8.7 mΩ at a V_BIAS of 5V, ensuring minimal voltage drop and power loss across the switch during operation.
• Current Handling: It is capable of handling continuous current up to 6A, providing ample throughput for most power distribution requirements.
• Quick Output Discharge: An integrated quick output discharge transistor (QOD) ensures that the output voltage is rapidly discharged when the switch is turned off, preventing any unwanted power residue on the load.
• Protection Features: The device includes over-current and over-temperature protection, enhancing system reliability by preventing damage due to excessive power or heat conditions.
• Controlled Slew Rate: The TPS22965DSGT features a controlled slew rate to minimize inrush current, which helps to reduce noise and voltage spikes in sensitive applications.

Applications

The versatile nature of the TPS22965DSGT makes it an excellent choice for a wide range of applications, including:

• Smartphones, Tablets, and Portable Electronics
• Enterprise Systems and Servers
• Power Supplies and Power Distribution Systems
• Industrial and Automotive Electronics

Package and Availability

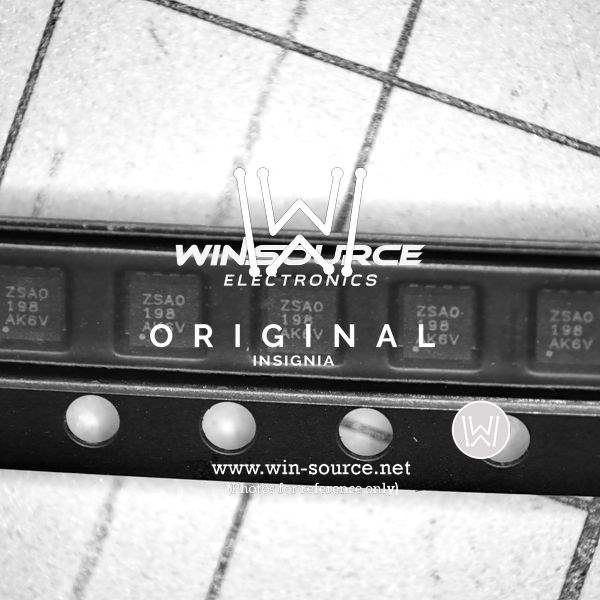

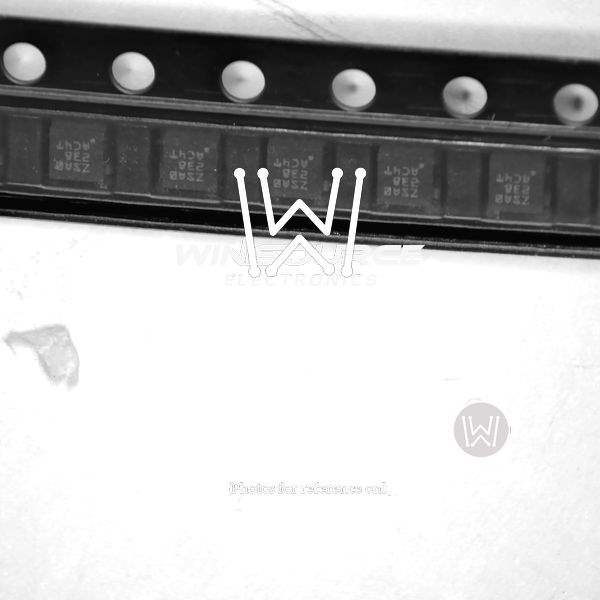

The TPS22965DSGT is offered in a compact WSON-8 (DSG) package, which is optimized for space-constrained applications. Its small footprint and low profile make it ideal for portable and space-sensitive designs. The device is available for order from Texas Instruments and authorized distributors, ensuring ready availability for both prototype development and mass production.

With its robust performance, comprehensive protection features, and versatile application range, the TPS22965DSGT is a powerful solution for modern electronic power management needs.
