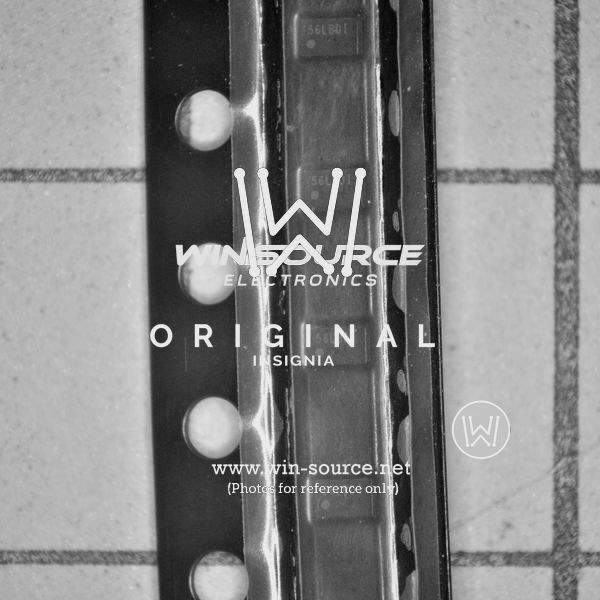

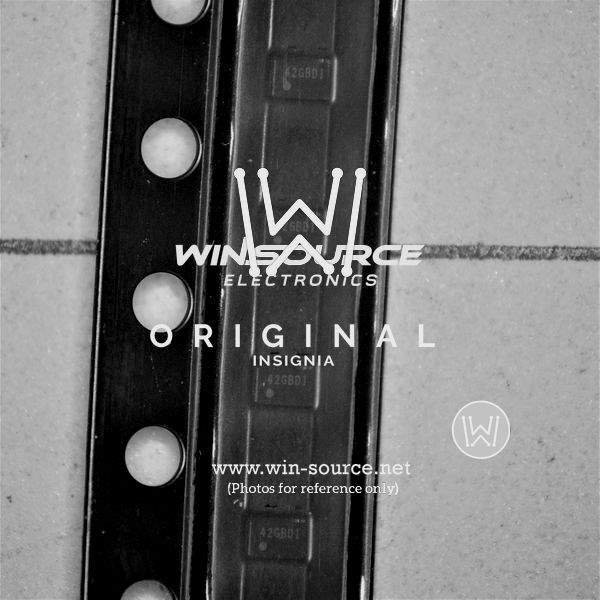

Product Overview: TPS22963CYZPR by Texas Instruments

The TPS22963CYZPR is a state-of-the-art integrated circuit (IC) from Texas Instruments (TI), designed for efficient power distribution and management. This compact, high-performance component is ideal for a variety of applications, including portable electronics, computing devices, and power-sensitive systems that require precise control over their power supply.

Key Features

• Ultra-Low On-Resistance: The TPS22963CYZPR boasts an ultra-low on-resistance (R<sub>ON) of just 8.7 mΩ at a 4.5V gate drive, which enhances overall system efficiency by minimizing conduction losses.
• Low-Input Voltage Range: This IC operates at a low-input voltage range from 0.65V to 3.6V, making it suitable for low-voltage applications and ensuring compatibility with a variety of power sources.
• High-Current Handling: The device is capable of handling high continuous current up to 4 A, which is essential for powering demanding loads.
• Quick Output Discharge: It features a quick output discharge (QOD) that ensures the output capacitance is discharged swiftly when the switch is turned off, thereby preventing any unwanted power residue in the system.
• Compact Package: The TPS22963CYZPR is available in a compact 1.5mm x 2mm, 8-pin YZP package, which is designed to occupy minimal space on a printed circuit board (PCB).

Applications

This power switch is versatile and can be used in a variety of applications, including:

• Smartphones and tablets
• Wearable devices
• Portable medical equipment
• Internet of Things (IoT) devices
• SSDs and other memory storage devices
• Power supply sequencing

Reliability and Performance

The TPS22963CYZPR is designed for reliability, with built-in protection features such as under-voltage lockout (UVLO), over-temperature protection, and input voltage surge protection. These features ensure stable operation under various conditions and safeguard the IC from potential damage. With its high efficiency and robust design, the TPS22963CYZPR from Texas Instruments is an excellent choice for designers seeking to optimize power management in their next-generation electronic devices.
