The TPS22925CYPHR is a state-of-the-art load switch developed by Texas Instruments, designed to provide a high-performance power management solution for a wide range of applications. This compact, feature-rich component is optimized for efficient power distribution and control, making it an ideal choice for designers looking to enhance the power efficiency and battery life of their systems.

Key Features

• Ultra-Low On-Resistance: The TPS22925CYPHR boasts an ultra-low on-resistance (RON) of only 28 mΩ at a 5.5V input voltage, minimizing voltage drop and power loss, which is crucial for maintaining energy efficiency in power-sensitive designs.
• Input Voltage Range: This load switch operates over a wide input voltage range from 0.9V to 5.5V, making it versatile for various applications, from low-power portable devices to higher voltage digital circuits.
• Low Quiescent Current: It features a low quiescent current of 1 µA (typical), which is beneficial for battery-powered applications where extending operational life is of paramount importance.

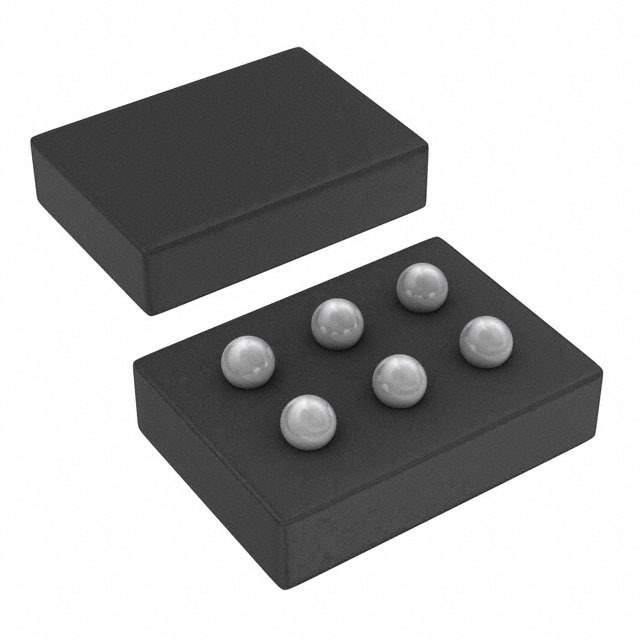

• Small Package Size: The TPS22925CYPHR comes in a compact 6-pin, 1.5mm x 1mm YFP (DSBGA) package, which is ideal for space-constrained applications.
• Controlled Slew Rate: The built-in controlled slew rate reduces inrush current, which can help prevent system voltage droop and protect downstream components from electrical stress.
• Quick Output Discharge: It also includes a quick output discharge feature that provides a rapid discharge of the load capacitance when the switch is turned off, ensuring a faster turn-off response and system readiness for subsequent operations.

Applications

The versatility of the TPS22925CYPHR load switch makes it suitable for a broad array of applications. It is widely used in:

• Smartphones, Tablets, and Wearable Devices
• Wireless Headsets and Audio Equipment
• Portable Medical Devices
• Power Management for IoT Devices
• Energy Harvesting Systems
• Peripheral Ports in Computers and Laptops

With its advanced features and robust performance, the TPS22925CYPHR from Texas Instruments represents a superior choice for designers aiming to implement efficient power management in their electronic products.
