The TPS22925CNYPHT from Texas Instruments is a high-performance, single-channel load switch designed for power management applications. This compact and efficient component is ideal for systems that require minimal power consumption and space-saving solutions.

Key Features:

• Ultra-Low On-Resistance (Ron): The TPS22925CNYPHT boasts an ultra-low on-resistance of typically 28 mΩ at 5.5 V, which helps to reduce power loss and improve efficiency in power distribution systems.
• Low Input Voltage Range: This load switch operates over a wide input voltage range from 0.9 V to 5.5 V, making it versatile and suitable for a variety of low-voltage applications, including those powered by Li-Ion batteries or 5 V rails.
• Quick Output Discharge: The device features a quick output discharge transistor that provides a rapid discharge of the output capacitance when the switch is turned off, thereby preventing any unwanted power residue in the system.
• Controlled Slew Rate: The TPS22925CNYPHT is designed with a controlled slew rate to minimize inrush current, reducing system voltage droop and mitigating the risk of power rail collapse.

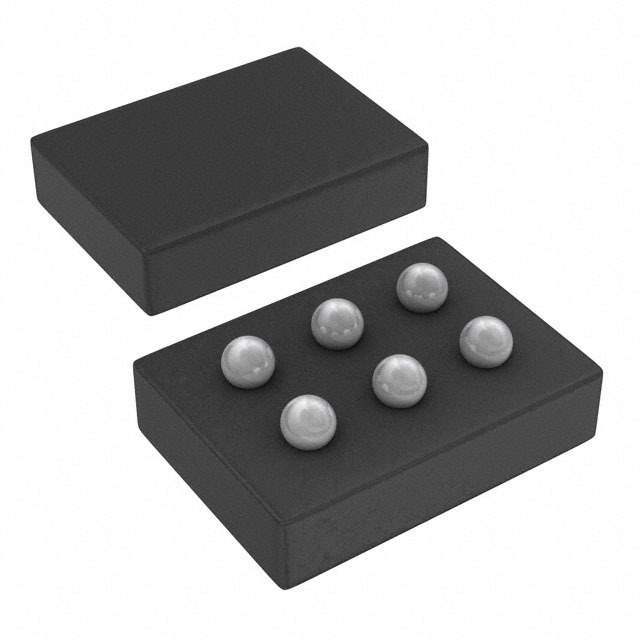

• Small Package Size: Encased in a compact 6-pin 1.5-mm x 1-mm DSBGA package, this load switch is optimized for space-constrained applications such as portable electronics, wearables, and Internet of Things (IoT) devices.

Applications:

With its versatile feature set, the TPS22925CNYPHT is suitable for a wide range of applications, including:

• Smartphones and Tablets
• Wireless Headsets and Earbuds
• Portable Media Players
• Wearable Technology
• IoT Devices
• Power Management for Peripheral Ports

Technical Specifications:

Overall, the TPS22925CNYPHT from Texas Instruments is an excellent choice for designers looking to enhance power efficiency and save board space without sacrificing performance.
