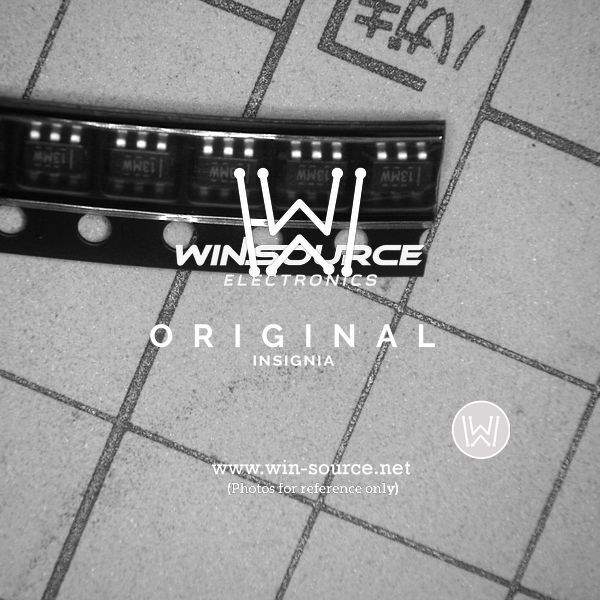

Overview of Texas Instruments TPS22918DBVT

The Texas Instruments TPS22918DBVT is a high-performance, single-channel load switch designed for power management applications in a variety of electronic devices. With its compact SOT-23-6 package, this load switch offers a space-saving solution that is ideal for portable and space-constrained applications.

Key Features

• Low On-Resistance: The TPS22918DBVT boasts a low on-resistance (R_ON) of typically 56 mΩ at a 5 V gate drive, which enhances overall system efficiency by minimizing voltage drop and power loss during operation.
• Input Voltage Range: It supports a wide input voltage range from 1.05 V to 5.5 V, making it versatile for various circuits and ensuring compatibility with low-voltage power rails.
• Quick Output Discharge: An integrated quick output discharge transistor ensures that the output capacitance is discharged swiftly when the switch is turned off, which is critical for applications requiring fast power-down sequences.
• Controlled Slew Rate: The device features a controlled slew rate to mitigate inrush current, which can help prevent system voltage droop and reduce electromagnetic interference (EMI).
• Low Quiescent Current: The TPS22918DBVT is designed to have a low quiescent current, thereby reducing power consumption when the switch is in the on state.
• Under-Voltage Lockout (UVLO): The UVLO feature ensures that the switch remains off if the input voltage is below a certain threshold, protecting downstream components.

Applications

The TPS22918DBVT is suitable for a wide range of applications, including but not limited to:

• Smartphones, tablets, and other portable electronics
• Power distribution systems
• Energy management
• Industrial and medical equipment
• Point-of-load (POL) power distribution

Reliability and Protection

This load switch also incorporates several protection features to ensure reliable operation, including over-current protection, over-temperature protection, and reverse current protection. These features safeguard the device and connected components from potential damage due to abnormal operating conditions.

In summary, the TPS22918DBVT from Texas Instruments is a highly efficient, reliable, and versatile load switch that offers advanced features for modern electronic systems, ensuring safe and efficient power management across a broad array of applications.
