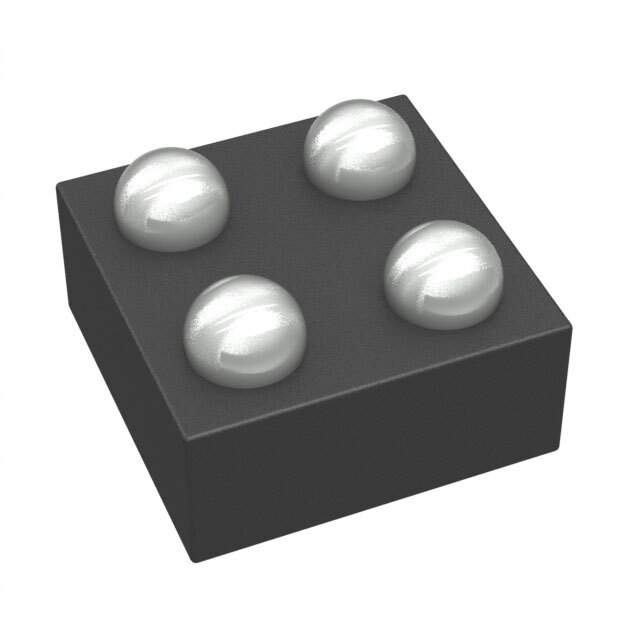

Product Overview: TPS22912CYZVR by Texas Instruments

The TPS22912CYZVR is a high-performance, low rON load switch designed by Texas Instruments to provide power distribution and management solutions in various electronic applications. This compact and efficient device is an integral component in modern electronics, ensuring that power is allocated effectively while protecting the system from potential damage caused by overcurrent conditions.

Key Features

• Low On-Resistance: The TPS22912CYZVR boasts an ultra-low on-resistance (rON) of typically 8 mΩ at a 5V gate drive, which minimizes power loss and ensures efficient power distribution to the load.
• Input Voltage Range: This load switch operates over a wide input voltage range from 1.5V to 5.5V, making it versatile for various applications and compatible with many different types of electronic devices.
• Current Handling: With a maximum continuous current rating of 2A, the TPS22912CYZVR is capable of handling substantial power requirements for a variety of loads.
• Quick Output Discharge: The integrated quick output discharge transistor provides a rapid discharge of the load capacitance when the switch is turned off, which is crucial for power-down and energy-saving modes.
• Controlled Slew Rate: The device features a controlled slew rate to help reduce inrush current, which can be critical in preventing system voltage drops and ensuring stable operation.
• Protection Features: It includes robust protection features such as overcurrent protection, thermal shutdown, and under-voltage lockout (UVLO), which safeguard both the load switch and downstream components from damage.
• Compact Package: Housed in a tiny 1.5mm x 1.5mm, 6-pin ultra-thin DSBGA package, the TPS22912CYZVR saves valuable board space and is suitable for space-constrained applications.

Applications

The TPS22912CYZVR is ideal for a broad range of applications, including but not limited to:

• Smartphones, tablets, and other portable electronics
• Power management for peripheral ports (USB, HDMI, etc.)
• Wearable technology with power-sensitive requirements
• SSDs and other memory storage devices
• Point-of-load power distribution systems

With its combination of efficiency, reliability, and protection features, the TPS22912CYZVR from Texas Instruments stands out as a top choice for designers looking to optimize their power management strategies in compact, high-performance electronic systems.
