The TPS2202IDF from Texas Instruments is a sophisticated integrated circuit designed to provide power-interface switching for dual-slot PC Card applications. This device is particularly suitable for notebook computers and other portable devices that require the use of PC Cards, also known as PCMCIA cards.

Key Features:

• Independent Slot Control: The TPS2202IDF is capable of independently controlling the power to each slot, allowing for maximum flexibility and power management efficiency.
• Short-Circuit Protection: With built-in short-circuit protection, the device ensures safety and reliability by preventing damage to the PC Card and the host system in the event of a fault condition.
• Low On-Resistance: The switch's low on-resistance minimizes voltage drop and power dissipation, thereby extending battery life in portable applications.
• Thermal Shutdown: The TPS2202IDF features thermal shutdown protection, which safeguards the device and the system by turning off the power if the temperature exceeds a safe limit.
• Under-Voltage Lockout: This feature ensures that the switch remains off if the supply voltage is insufficient, preventing erratic operation or damage to the card and system.

Applications:

The device is ideal for a wide range of applications, including:

• Notebook Computers
• Portable Instrumentation
• Mobile Communication Devices
• PC Card Hot Swap Supplies

Package and Quality:

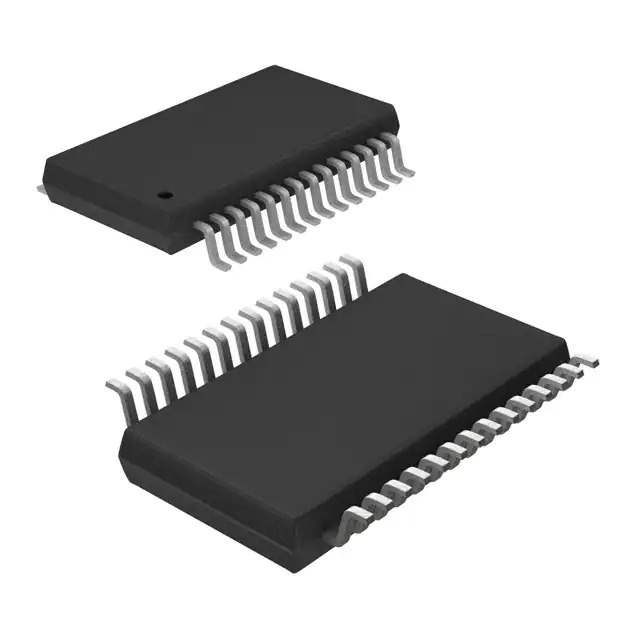

The TPS2202IDF is offered in a 30-pin TSSOP (Thin Shrink Small Outline Package) that provides a compact footprint while maintaining robustness for handling and assembly. The device is manufactured under Texas Instruments' stringent quality control standards, ensuring high reliability and performance for critical applications.

With its combination of power management features, safety protections, and efficient design, the TPS2202IDF from Texas Instruments stands out as an excellent choice for designers looking to optimize the power interface of dual-slot PC Card systems.
