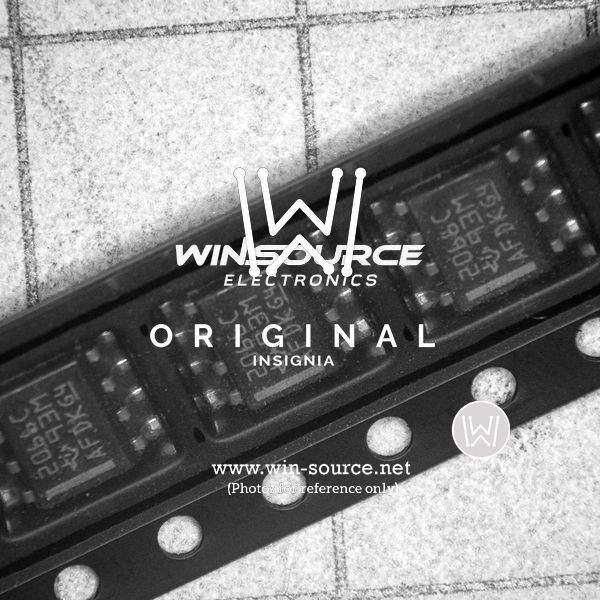

Overview of Texas Instruments TPS2066CDR

The TPS2066CDR from Texas Instruments is a robust, high-performance power distribution switch designed for applications requiring multiple USB ports or other power-driven components. This integrated circuit is part of TI's power management product line and is specifically engineered to enhance the functionality and safety of systems that manage power distribution to various peripherals.

Key Features

• Multiple USB Ports: The TPS2066CDR is capable of supporting up to two USB outlets, making it an ideal choice for systems that require dual USB functionalities.
• Current-Limiting: It features a built-in current-limiting function that protects the device and the system from excessive current draw that could otherwise cause damage.
• Thermal Shutdown: With thermal shutdown protection, the device prevents overheating by automatically turning off when the internal temperature exceeds a certain threshold.
• Overcurrent Protection: The device ensures that any overcurrent conditions are swiftly managed to prevent potential damage to the system.
• Fast Transient Response: The TPS2066CDR has been optimized for a rapid transient response, which is critical for maintaining stable operations during sudden changes in load.

Applications

The versatility of the TPS2066CDR makes it suitable for a variety of applications, such as:

• USB hubs and docking stations
• Desktop and notebook computers
• Peripheral power management
• Hot-swap supplies

Technical Specifications

Some of the key technical specifications of the TPS2066CDR include:

• Operating Voltage Range: 2.7V to 5.5V
• Continuous Output Current: Up to 1A per channel
• Package: 8-pin SOIC (Small Outline Integrated Circuit)
• Operating Temperature Range: -40°C to 85°C

Quality and Reliability

Texas Instruments is known for its commitment to quality, and the TPS2066CDR is no exception. It is designed to meet high standards of reliability, ensuring long-term performance in a range of environments and applications.

For more detailed information, including datasheets, reference designs, and ordering options, visit the Texas Instruments official website or contact an authorized distributor.
