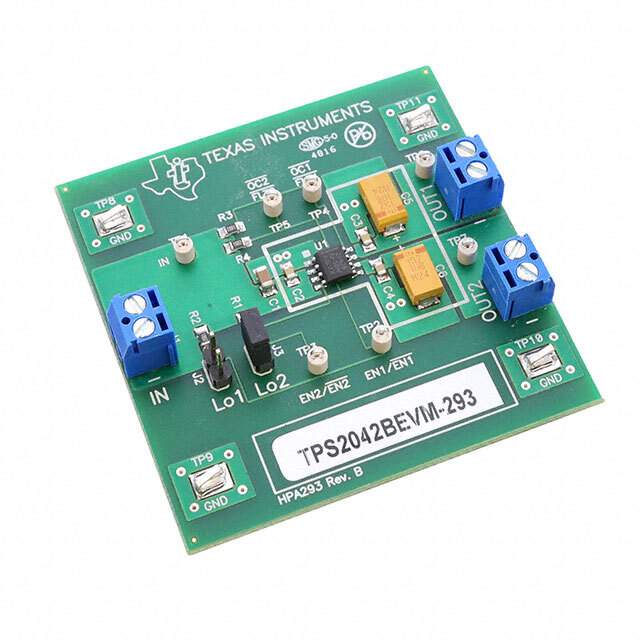

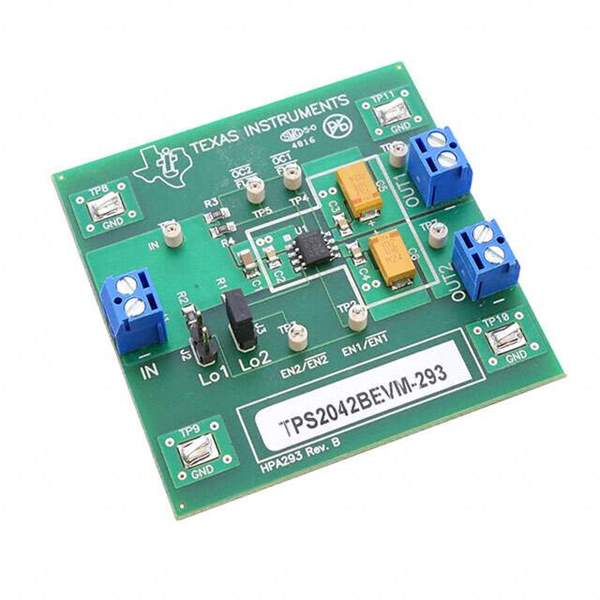

Product Overview: TPS2042BEVM-293 Evaluation Module

The TPS2042BEVM-293 is a fully assembled and tested circuit for evaluating the TPS2042B Dual High-Side MOSFET Switch from Texas Instruments. This advanced evaluation module (EVM) is designed to demonstrate the capabilities of the TPS2042B device in a typical USB power distribution application. The TPS2042B is a dual-channel, current-limited, power-distribution switch optimized for self-powered and bus-powered Universal Serial Bus (USB) applications.

Key Features

• Integrated Dual Channels: The TPS2042B features two independent power switch channels, each with its own over-current and thermal protection.
• Current Limiting: Each channel provides precise current limiting to protect the host device and downstream peripherals from over-current conditions.
• Thermal Shutdown: Thermal shutdown protection is included to prevent overheating and damage to the circuit under extreme operating conditions.
• Status Flag Output: The EVM includes status flag outputs that indicate fault conditions to the host controller, enhancing system management and reliability.
• Reverse Voltage Protection: The TPS2042B incorporates internal circuitry to protect against reverse voltage, ensuring device safety and longevity.

Applications

The TPS2042BEVM-293 is ideal for various applications, including:

• USB hubs and peripherals
• Desktop and notebook computers
• Consumer electronics
• Portable equipment

Design and Layout

The EVM is designed with a compact and efficient layout, providing easy access to all critical test points. This facilitates quick evaluation and prototyping, allowing designers to rapidly integrate the TPS2042B into their designs. The module includes connectors compliant with USB specifications, ensuring compatibility with standard USB cables and devices.

Support and Resources

Users of the TPS2042BEVM-293 benefit from Texas Instruments' extensive support network. Documentation, including the evaluation module user guide, schematics, and bill of materials, is readily available. Additionally, TI's online forums and technical resources provide further assistance for developers working with the TPS2042B switch.

With its robust feature set and comprehensive support, the TPS2042BEVM-293 is an invaluable tool for engineers seeking to implement USB power distribution solutions with high reliability and protection features.
