Product Overview: TPS2041BDGNR by Texas Instruments

The TPS2041BDGNR is a state-of-the-art single channel, current-limited, power-distribution switch designed by Texas Instruments for applications where precision and reliability are paramount. This integrated circuit is tailored to manage power distribution in USB and other applications, with a focus on protecting the host device from over-current, short-circuit, and thermal overload conditions.

Key Features

• Current Limiting: The TPS2041BDGNR offers programmable current limiting to prevent damage to host devices due to over-current conditions. This feature is essential for maintaining the integrity and longevity of electronic systems.
• Thermal Shutdown Protection: With built-in thermal shutdown protection, the device safeguards itself and the system from the risks associated with excessive heat. This protection mechanism ensures safe operation under varying conditions.
• Fast Transient Response: The device is engineered to respond quickly to transient loads, providing stable operation and reducing the risk of system failure.
• Under-Voltage Lockout (UVLO): The UVLO feature ensures that the switch remains off when the input voltage is below a certain threshold, protecting the device and the system from undervoltage conditions.

Applications

The TPS2041BDGNR is versatile and can be used in a variety of applications, including:

• USB hubs and peripherals
• Portable electronics
• Hot-swap supplies
• Power management for consumer electronics

Quality and Reliability

Texas Instruments is known for its commitment to quality, and the TPS2041BDGNR is no exception. It is designed to meet the rigorous standards of industrial performance, ensuring reliability in a wide range of operating conditions. The device is also RoHS compliant, reflecting TI's dedication to environmental responsibility.

Package and Availability

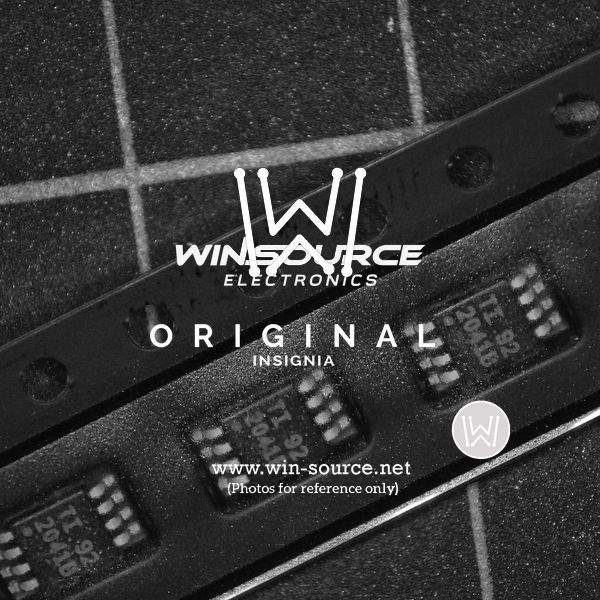

The TPS2041BDGNR comes in an 8-pin MSOP (DGN) package, which is compact and suitable for space-constrained applications. It is available for order in various quantities to meet the needs of both small and large-scale projects.

For detailed specifications, application notes, and support resources, customers are encouraged to visit the Texas Instruments website or contact their support team. The TPS2041BDGNR is a testament to TI's innovation in power management technology, offering efficiency, protection, and peace of mind for a wide array of electronic applications.
