Product Overview: TPS2021DRG4 from Texas Instruments

The TPS2021DRG4 is a highly reliable and efficient power distribution switch designed by Texas Instruments, tailored for applications that require current limiting and thermal protection. As part of the TPS202x family, this device is specifically engineered to enhance the functionality of general-purpose power distribution systems that are sensitive to heavy load conditions, such as USB ports and other hot-swap environments.

Key Features

• Current Limiting: The TPS2021DRG4 is equipped with a precise current-limiting feature that prevents damage to host devices by restricting excessive current flow during overload conditions.
• Thermal Shutdown: To safeguard against overheating, the device includes an intelligent thermal shutdown mechanism that disables the output when the junction temperature exceeds safe operating limits.
• Fast Transient Response: With its fast transient response, the TPS2021DRG4 is capable of handling rapid load changes, ensuring stable performance under dynamic conditions.
• Operating Voltage Range: This power switch operates over a broad voltage range from 2.7V to 5.5V, making it versatile for various low voltage applications.
• Controlled Rise Time: The device features a controlled output rise time which reduces inrush current, thus minimizing system voltage drops and potential damage to sensitive components.

Applications

The TPS2021DRG4 is ideal for several applications where power distribution and protection are critical. Common use cases include:

• USB hubs and peripherals
• Hot-swap power supplies
• Portable electronics
• Power management for motherboards and add-on cards

Quality and Reliability

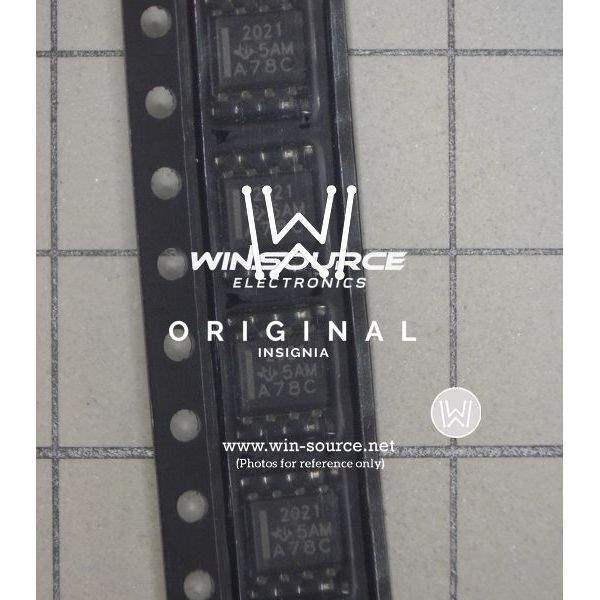

As with all Texas Instruments products, the TPS2021DRG4 is manufactured to the highest quality standards, ensuring reliable operation for the life of the product. It is available in a small, thin SOP (DRG) package, which is RoHS compliant and compatible with standard PCB assembly processes.

Whether you're designing a sophisticated USB interface or a robust power management system, the TPS2021DRG4 from Texas Instruments provides a compact, efficient, and protective solution that will meet your circuit protection needs.
