The Texas Instruments TPS2020D is a state-of-the-art power distribution switch designed for applications requiring power management and precise current limiting. This robust device is part of TI's extensive portfolio of integrated circuits and stands out for its ability to enable or disable the flow of power in a controlled manner.

Key Features

• Current Limiting: The TPS2020D is equipped with an adjustable current-limit feature that helps protect the power source from excessive load. This ensures reliable operation and extends the life of both the power source and the connected devices.
• Operating Voltage: It operates over an input voltage range of 2.7V to 5.5V, making it versatile for various low-voltage applications.
• Thermal Shutdown: With an integrated thermal shutdown mechanism, the TPS2020D prevents overheating by automatically turning off when the junction temperature exceeds a preset threshold.
• Fast Transient Response: The device is designed to respond quickly to changes in load conditions, ensuring stable operation during sudden shifts in power demand.

Applications

The TPS2020D is ideal for a wide range of applications, including:

• USB hubs, peripherals, and other computer-related devices.
• Hot-swap power supplies that require safe insertion and removal of circuitry.
• Portable electronics where battery preservation is crucial.
• Power distribution systems that need precise control over multiple outputs.

Technical Specifications

• Output Current: Up to 2A continuous

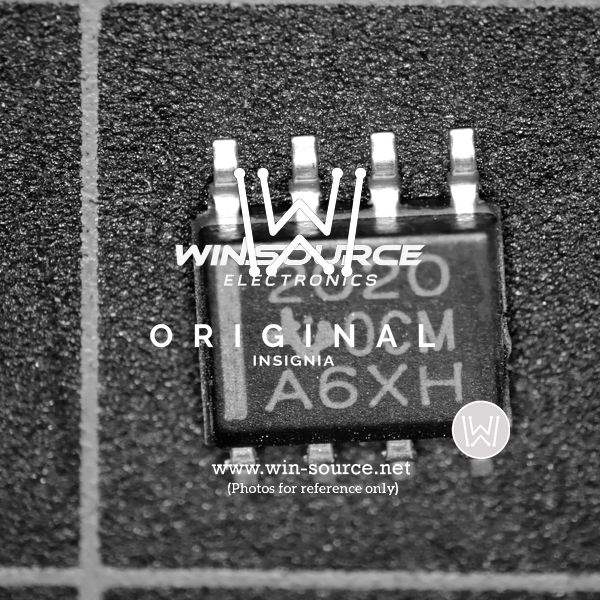

• Package: Available in an 8-pin SOIC package
• Switch On-Resistance: Low on-resistance of 70 mΩ typical

Overall, the Texas Instruments TPS2020D represents a reliable and efficient solution for power management challenges. Its combination of protection features, versatility, and performance makes it an excellent choice for designers looking to enhance system reliability and extend battery life in their electronic products.
