TPD4E02B04QDQARQ1 - Texas Instruments ESD Protection Device

The TPD4E02B04QDQARQ1 is a state-of-the-art ESD protection device designed by Texas Instruments to safeguard high-speed interfaces from electrostatic discharge damages. It is a crucial component for maintaining the integrity and longevity of electronic systems, particularly those that are susceptible to ESD events due to their high-speed data lines.

Key Features:

• ESD Protection: This device offers robust ESD protection for up to four data lines, ensuring that each line is safeguarded against ESD strikes as defined by the IEC 61000-4-2 international standard. It can withstand ESD events up to ±8 kV (Contact) and ±15 kV (Air-Gap Discharge).
• Low Capacitance: The TPD4E02B04QDQARQ1 features ultra-low capacitance (0.5 pF typical), making it ideal for protecting high-speed interfaces without significantly affecting signal integrity.

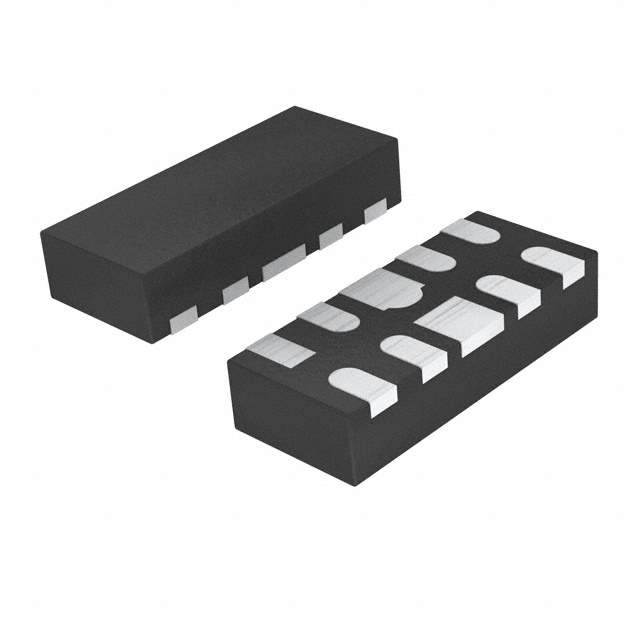

• Small Package Size: Enclosed in a compact DQA (X2SON) package, this device is perfect for space-constrained applications. The small footprint allows for easy integration into various designs.
• Wide Operating Range: It operates over a broad temperature range, from -40°C to 85°C, making it suitable for diverse environments and applications.

Applications:

The TPD4E02B04QDQARQ1 is ideal for protecting high-speed data lines in a variety of applications, including:

• USB interfaces (USB 2.0, USB 3.0)
• HDMI ports
• DisplayPort interfaces
• Thunderbolt ports
• SATA and other high-speed data lines

Why Choose TPD4E02B04QDQARQ1?

With its combination of high-level ESD protection, low capacitance, and compact size, the TPD4E02B04QDQARQ1 from Texas Instruments is an excellent choice for designers looking to enhance the ESD robustness of their systems without compromising on performance or space. Whether it's for consumer electronics, telecommunications, or computing applications, this ESD protection device helps ensure that your high-speed data interfaces are shielded from the potentially damaging effects of electrostatic discharge.
