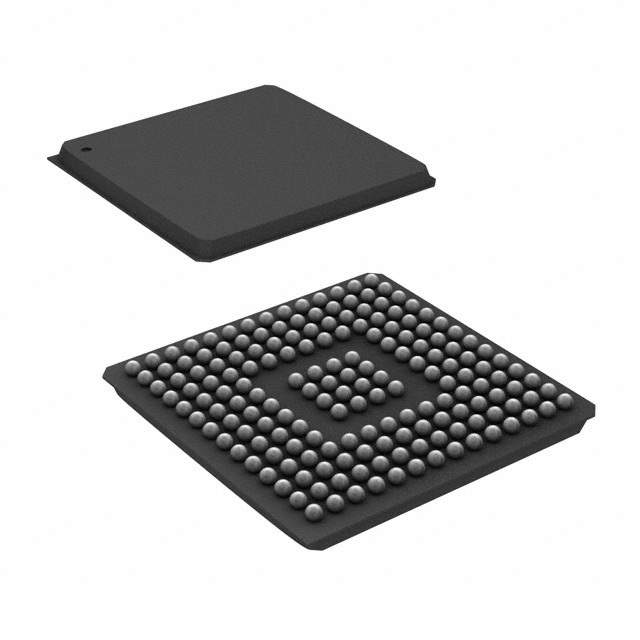

The Texas Instruments TMS320F28234ZJZS is a highly capable microcontroller that belongs to the TMS320F28x series, known for its advanced digital signal processing (DSP) capabilities. This particular model is designed to meet the demanding requirements of modern control applications, including industrial control, automotive control systems, power supplies, and renewable energy systems.

Key Features

• High-Performance DSP: At its core, the TMS320F28234ZJZS features a 32-bit C28x DSP core that can run at speeds up to 150 MHz, delivering robust processing power for complex algorithms and control functions.
• Memory: It comes with 256 KB of flash memory, 34 KB of RAM, and 16 KB of data flash for efficient data storage and retrieval, ensuring smooth operation even in data-intensive tasks.
• Advanced Peripherals: The microcontroller includes a variety of peripherals, such as PWM outputs, capture inputs, QEP interfaces, and a 12-bit ADC with up to 16 channels, all of which provide versatile interfacing options for a wide range of applications.
• Communication Interfaces: Multiple communication interfaces are available, including CAN, SPI, I2C, and UART, allowing for easy integration into existing systems and facilitating communication with other devices.
• Robust Design: The TMS320F28234ZJZS is designed to operate reliably in harsh environments, with an extended temperature range and built-in error detection and correction mechanisms.

Applications

The TMS320F28234ZJZS is suited for a variety of applications that require precise control and high-speed digital signal processing, such as:

• Motor control and drive systems
• Power converters and inverters
• Renewable energy systems, including solar inverters and wind turbine controllers
• Automotive control systems, including electric and hybrid vehicle power management
• Industrial automation and robotics

Development Support

To facilitate development, Texas Instruments provides comprehensive software and hardware support, including development kits, reference designs, and a suite of software libraries and tools that streamline the development process and reduce time to market.
