The Texas Instruments TMS320F2809GGMS is a high-performance, 32-bit microcontroller that is part of the TMS320F28x series, known for its robust digital signal processing (DSP) capabilities. This microcontroller is designed to meet the demanding control needs of modern embedded applications in areas such as industrial control, automotive systems, digital power conversion, and motor control.

Key Features

• High-Performance DSP: Equipped with a 32-bit CPU that can run at a clock speed of up to 150 MHz, the TMS320F2809GGMS provides exceptional processing power for complex algorithms and control tasks.
• Memory: It includes 256KB of high-speed flash memory and 18KB of RAM, allowing for efficient code execution and data storage.
• Peripherals: A wide range of integrated peripherals enhances functionality, including PWM outputs, 12-bit analog-to-digital converters (ADCs), capture inputs, and communication interfaces such as I2C, SPI, CAN, and UART.
• Control-Oriented Architecture: The device features a high-resolution PWM unit and a 32-bit quadrature encoder pulse (QEP) circuit, making it ideal for precision motor control applications.

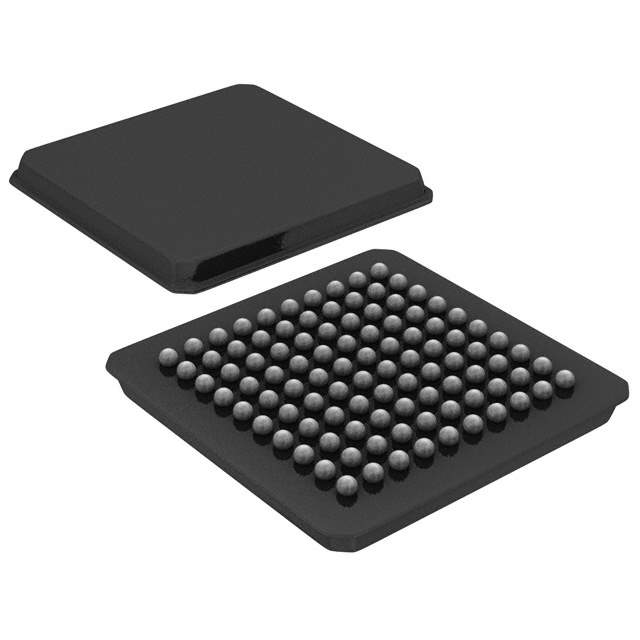

• Robust Design: The TMS320F2809GGMS is designed for reliability and durability, with features like a single 3.3V power supply, an extended temperature range, and a 100-pin green packaging.

Applications

This microcontroller is well-suited for a variety of applications that require high-speed DSP functions and real-time control, such as:

• Industrial automation and robotics
• Automotive systems, including electric and hybrid vehicle control
• Renewable energy systems, such as solar inverters and wind turbine controllers
• Uninterruptible power supplies (UPS)
• Advanced digital power conversion

Development Support

Texas Instruments provides comprehensive development support for the TMS320F2809GGMS, including development tools, software libraries, and reference designs to help engineers reduce time to market. The microcontroller is also compatible with the Code Composer Studio integrated development environment (IDE), which offers a suite of tools for code development, debugging, and analysis.

With its powerful DSP capabilities and extensive peripheral set, the Texas Instruments TMS320F2809GGMS is a versatile and powerful microcontroller that can help drive innovation in a wide range of embedded systems.
