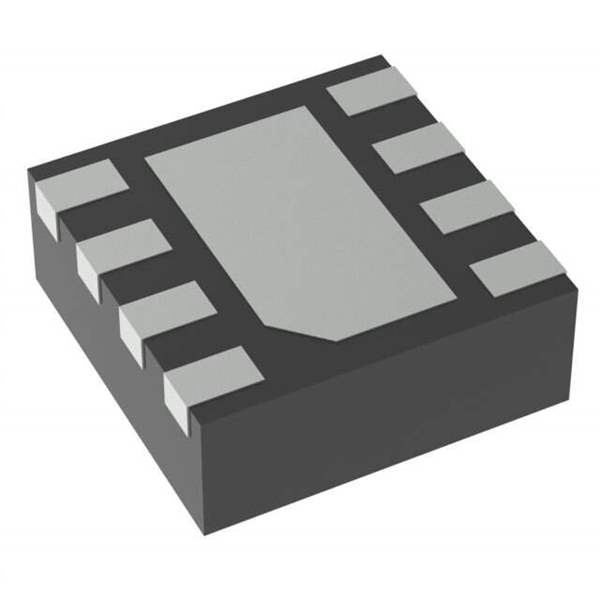

The TLV9042IDSGR from Texas Instruments is a high-performance, dual operational amplifier that is designed to offer a balance of low power consumption and high accuracy, making it an ideal choice for a wide range of applications. This op-amp features a rail-to-rail input and output swing, which allows for the maximum possible dynamic range at any supply voltage. This makes the TLV9042IDSGR particularly well-suited for battery-powered and portable devices where power efficiency is critical.

Key Features

• Low Power Consumption: The device operates with a quiescent current of just 550 µA per channel, which helps to extend battery life in portable applications.
• Wide Supply Voltage Range: It can be powered by a supply voltage ranging from 1.8V to 5.5V, providing design flexibility for various systems.
• Rail-to-Rail Input/Output: The op-amp can handle input signals that extend to the power supply rails and can output signals that approach the rails, maximizing signal amplitude.
• High Accuracy: With an offset voltage of only 1 mV and low noise, the TLV9042IDSGR ensures precise signal amplification, making it suitable for precision applications.
• Extended Temperature Range: This device is operational over an industrial temperature range of -40°C to +125°C, ensuring reliability in harsh environments.

Applications

The TLV9042IDSGR is versatile and can be used in a variety of electronic circuits. Here are some common applications:

• Portable and Battery-Powered Devices
• Sensor Signal Conditioning
• Active Filters
• Medical Devices
• Analog to Digital Converter (ADC) Buffer
• General-Purpose Low-Power Amplification

With its combination of low power, high accuracy, and wide operational range, the TLV9042IDSGR is a robust solution for designers looking to improve the performance and efficiency of their electronic systems. Its small form factor and operational stability make it an excellent choice for both new designs and upgrades to existing applications.
