Overview of Texas Instruments' TLV75533PDQNR

The TLV75533PDQNR is a high-performance, low-dropout (LDO) voltage regulator designed by Texas Instruments (TI) to meet the demanding requirements of modern electronic devices. This regulator offers a fixed output voltage of 3.3V, which is a common requirement for many digital and analog circuits in consumer, industrial, and telecommunications applications.

Key Features

• High Accuracy: The TLV75533PDQNR provides excellent regulation with a low dropout voltage, ensuring a stable and precise 3.3V output even under varying input voltages and load conditions.
• Low Dropout: With a dropout voltage typically less than 250mV at full load, this LDO is highly efficient and can operate close to the input supply voltage, minimizing power loss and heat generation.
• High Output Current: Capable of delivering up to 500mA of output current, this device can power a wide range of components, from sensitive RF circuits to microcontrollers and digital ICs.
• Power Supply Rejection Ratio (PSRR): The LDO features excellent PSRR characteristics, which helps to filter out unwanted noise and fluctuations from the power supply, providing a clean and stable voltage to sensitive circuits.
• Thermal Protection: The TLV75533PDQNR includes built-in thermal shutdown protection that safeguards the device and the connected components from damage due to excessive heat.
• Overcurrent Protection: An overcurrent protection mechanism ensures that the output current does not exceed the maximum specified limit, protecting both the regulator and the load from potential harm.

Applications

The TLV75533PDQNR is versatile and well-suited for a range of applications, including:

• Portable and battery-powered devices
• Wireless communication systems
• Power supplies for sensors and analog circuits
• Microcontroller power supplies
• IoT devices

Package and Availability

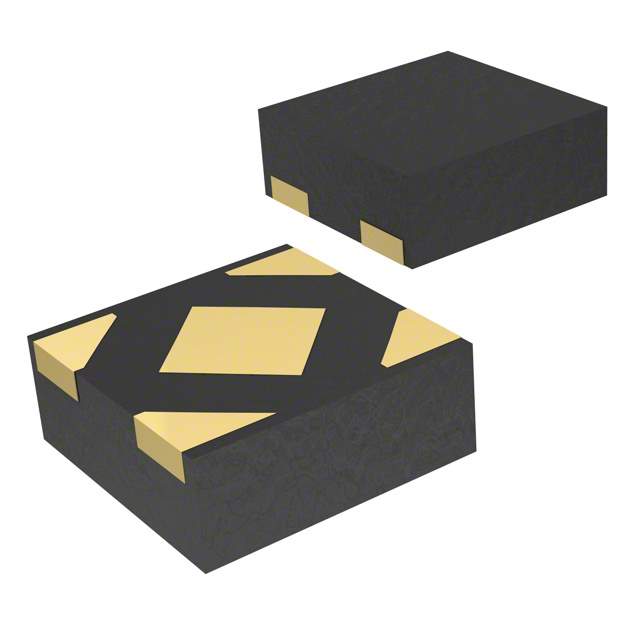

The device comes in a compact, surface-mount X2SON package, which is ideal for space-constrained applications. The TLV75533PDQNR is part of TI's extensive LDO voltage regulator portfolio and is widely available through TI's distribution network, offering designers a reliable and readily accessible power management solution.
