TLV320AIC23BIPW: High-Performance Audio Codec from Texas Instruments

The TLV320AIC23BIPW is a versatile and high-quality audio codec from Texas Instruments, designed to cater to a wide array of audio applications. This integrated circuit is part of the TLV320AIC23 family and offers a perfect solution for both recording and playback audio functionalities in portable audio devices, multimedia phones, and professional audio equipment.

Featuring an impressive 24-bit dual-channel ADC (Analog to Digital Converter) and DAC (Digital to Analog Converter), the TLV320AIC23BIPW delivers crystal-clear sound quality with a high signal-to-noise ratio, ensuring pristine audio capture and playback. Its ability to support sample rates from 8 kHz to 96 kHz makes it highly adaptable to various audio standards and requirements.

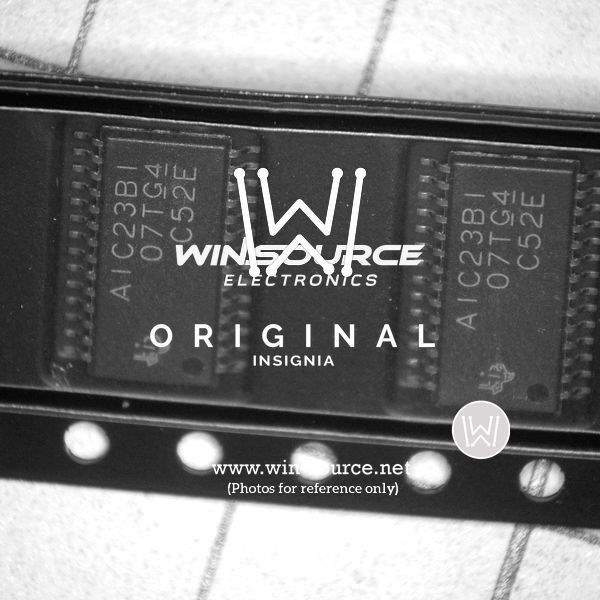

The device comes in a 28-TSSOP (Thin Shrink Small Outline Package) form factor, which makes it ideal for space-constrained applications. Its low power consumption is particularly beneficial for battery-powered devices, allowing for longer operation times without compromising audio performance.

The TLV320AIC23BIPW is equipped with multiple features that enhance its functionality and ease of use. These include programmable gain amplifiers, a microphone input with a bias voltage, and a line-level stereo input. It also provides a stereo line-level output and a headphone output, giving designers the flexibility to incorporate it into a variety of audio output configurations.

Digital audio data is transferred via a flexible serial interface that supports I²S, left-justified, right-justified, and DSP formats. This versatility ensures compatibility with most digital audio processors and microcontrollers in the market. Additionally, the codec can be controlled through an I²C-compatible serial control bus, allowing for easy integration and programmability within a system.

In summary, the TLV320AIC23BIPW from Texas Instruments is a high-performance audio codec that offers excellent audio quality, low power consumption, and a high degree of integration, making it an ideal choice for designers looking to enhance the audio capabilities of their products.
