Overview of Texas Instruments TLV2702IDGKR

The TLV2702IDGKR from Texas Instruments is a high-precision, dual-channel comparator that offers a perfect balance of speed, power, and accuracy, making it an ideal choice for a wide range of applications. This comparator is designed to operate over a wide supply range of 2.7 V to 18 V, providing the flexibility needed for both battery-powered and line-powered systems.

Key Features

• Supply Voltage Range: The TLV2702IDGKR operates on a supply voltage range from 2.7 V to 18 V, accommodating a variety of power sources.
• Dual Channel: It features two independent comparator channels, which can be used in a multitude of configurations such as window comparators or time delay circuits.
• Low Power Consumption: With a quiescent current of just 40 µA per channel, this device is optimized for power-sensitive applications.
• Fast Response Time: The comparator boasts a propagation delay of typically 2.5 µs, ensuring quick response times for critical signal processing tasks.
• Push-Pull Outputs: The TLV2702IDGKR offers push-pull outputs that can drive loads directly without the need for external pull-up resistors.
• Common-Mode Input Voltage Range: It includes an input common-mode range that extends below the negative supply, enhancing the comparator's versatility in single-supply operations.

Applications

The TLV2702IDGKR is suitable for a broad spectrum of applications, including:

• Threshold detection and signal monitoring
• Battery chargers and power management systems
• Window comparators for system voltage monitoring
• Zero-crossing detectors for digital signal processors
• Automotive and industrial electronics

Package and Quality

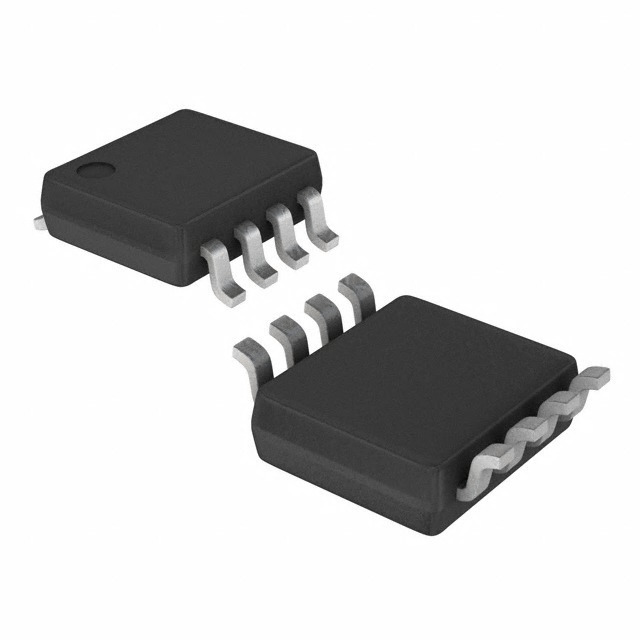

This device comes in a small, surface-mount 8-pin MSOP package (DGK) that is designed for space-constrained applications. The TLV2702IDGKR is characterized for operation from -40°C to 125°C, ensuring reliable performance across a wide range of temperatures. Texas Instruments is known for its commitment to quality, and this product is no exception, meeting stringent industry standards for performance and reliability.
