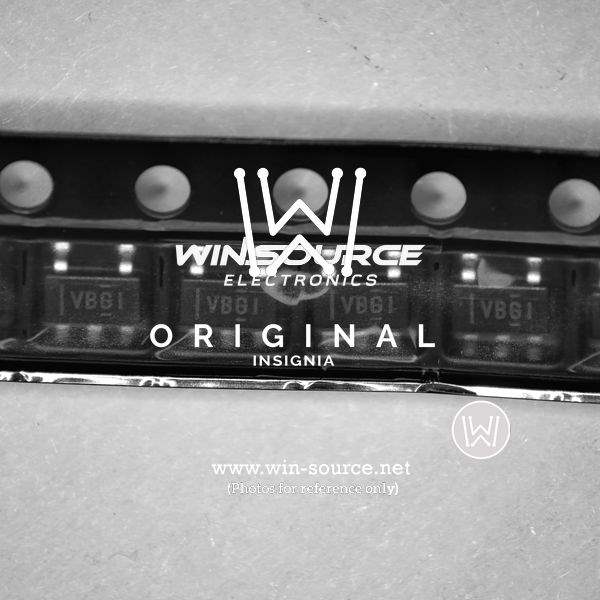

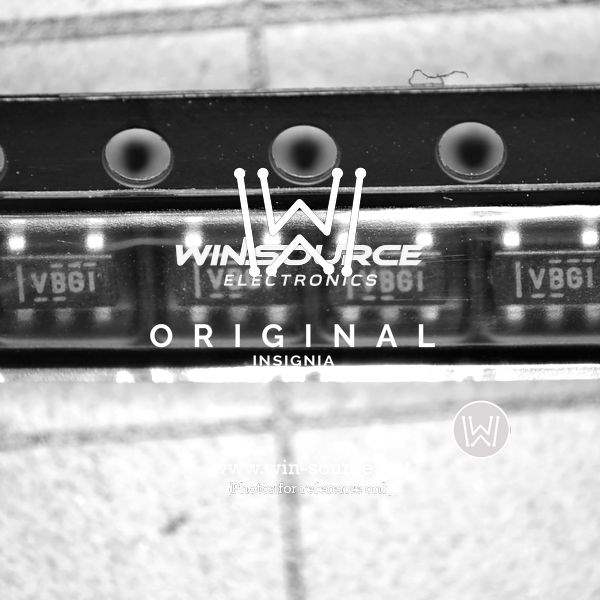

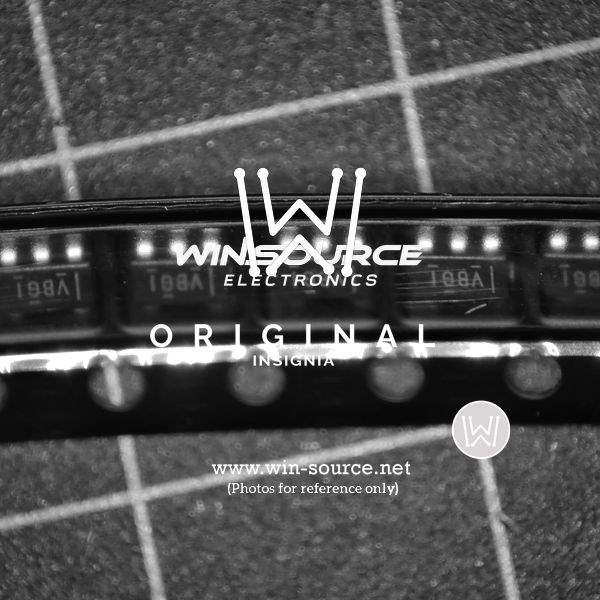

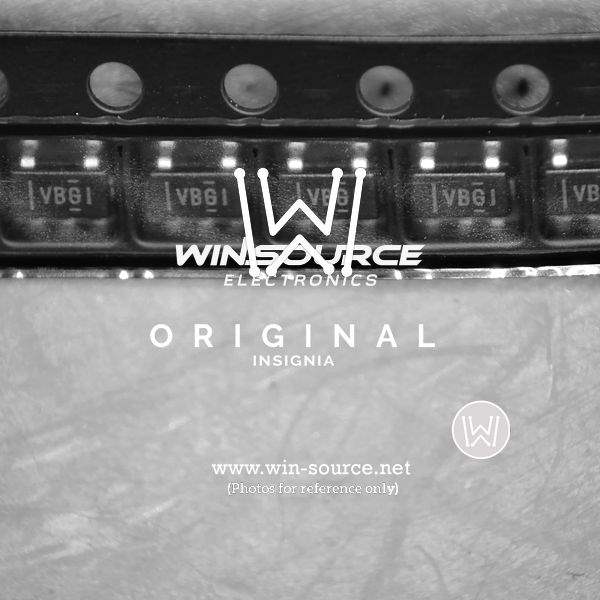

The TLV2371IDBVR from Texas Instruments is a state-of-the-art operational amplifier that delivers high performance for a wide range of applications. This op-amp is part of Texas Instruments' TLV237x family, which is renowned for its low-power consumption and precision. The TLV2371IDBVR is a single-channel amplifier that comes in a compact SOT-23-5 package, making it ideal for space-constrained applications.

Key Features

• Supply Voltage Range: The TLV2371IDBVR operates on a wide supply voltage range of 2.7V to 16V, which allows it to be used in various circuits without the need for multiple power supplies.
• Low Power Consumption: With a quiescent current of just 850 µA, this op-amp is designed for energy-sensitive applications that require efficient power management.
• High Output Drive Capability: It can drive loads as low as 600Ω, making it versatile for driving heavier loads when necessary.
• Rail-to-Rail Output: The TLV2371IDBVR features rail-to-rail output swing, which provides the maximum possible dynamic range at the output. This is particularly useful in single-supply operations and ADC (Analog-to-Digital Converter) driving applications.
• High Slew Rate: With a slew rate of 2.3 V/µs, the device can handle fast signal transitions, ensuring that the output can keep up with rapid changes in the input signal.
• Temperature Range: The operational amplifier is designed to operate over an extended industrial temperature range of -40°C to +125°C, ensuring reliability in harsh environments.

Applications

The versatile nature of the TLV2371IDBVR makes it suitable for a plethora of applications, including but not limited to:

• Portable and battery-powered electronics
• Sensor interfacing and signal conditioning
• Active filters and amplifiers
• Data acquisition systems
• Medical instrumentation
• Analog-to-digital converter drivers

Quality and Reliability

As with all Texas Instruments products, the TLV2371IDBVR is manufactured to the highest quality standards, ensuring both performance and longevity in all operational conditions. Its robust design and reliable performance make it an excellent choice for designers looking for an operational amplifier that combines efficiency with precision.
