The TCAN1051HDRBTQ1 by Texas Instruments is a robust, high-speed Controller Area Network (CAN) transceiver designed to serve the automotive industry. This device provides the interface between a CAN protocol controller and the physical two-wire CAN bus. It is optimized for 12 V automotive systems and is fully compliant with the ISO 11898-2:2016 standard.
Key Features
- High Electromagnetic Compatibility (EMC): With exceptional EMC performance, the TCAN1051HDRBTQ1 ensures reliable communication in the noisy automotive environment.
- Protection Features: This transceiver includes protection against faults and battery short-circuits, as well as thermal shutdown and an integrated fail-safe mode to handle bus faults.
- Low Power Mode: An ultra-low-power mode with a remote wake-up feature allows for reduced power consumption during idle periods.
- Wide Operating Range: The device supports an extended range of -40°C to +125°C, making it suitable for harsh automotive conditions.
Applications
The TCAN1051HDRBTQ1 is ideal for a range of automotive applications, including:
- Powertrain Systems
- Body Control Modules
- Advanced Driver Assistance Systems (ADAS)
- Infotainment and Telematics
Quality and Reliability

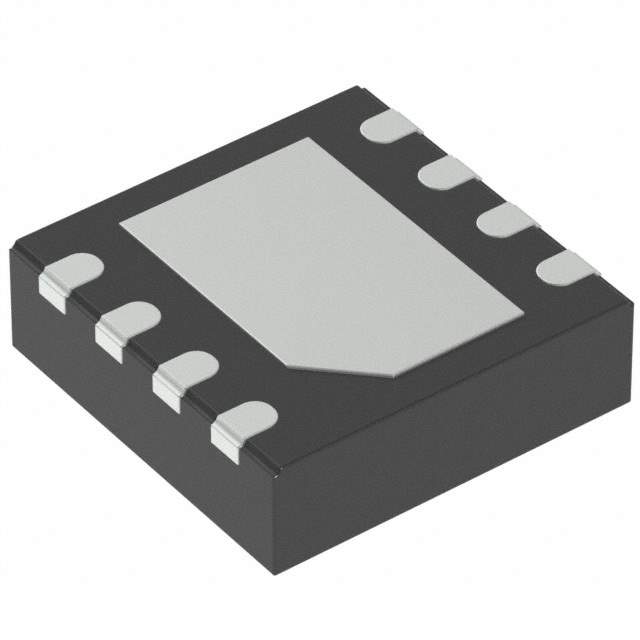

As a Texas Instruments automotive-qualified product, the TCAN1051HDRBTQ1 meets stringent quality and reliability standards. It is AEC-Q100 qualified, ensuring performance under extreme conditions, and comes in a small 8-pin DFN package with wettable flanks to facilitate optical inspection.
For engineers and designers looking for a dependable CAN communication interface, the TCAN1051HDRBTQ1 offers a blend of high-speed data transmission, robustness against interferences, and a suite of protective features. Its performance, coupled with Texas Instruments' support and reliability, makes it an excellent choice for modern automotive applications.
