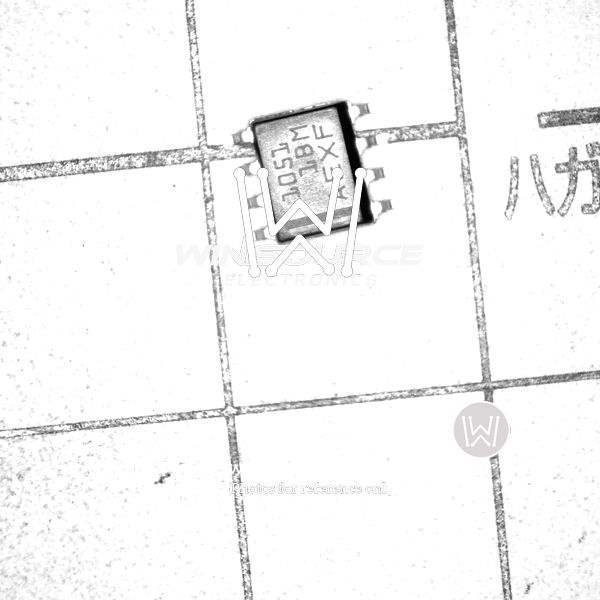

Texas Instruments TCAN1051DRQ1 CAN Transceiver

The Texas Instruments TCAN1051DRQ1 is a high-performance, automotive-grade Controller Area Network (CAN) transceiver that serves as an interface between a CAN protocol controller and the physical two-wire CAN bus. Designed with state-of-the-art technology, this transceiver is ideal for automotive applications and onboard networks, ensuring reliable communication in challenging environments.

Key Features

• Robustness: The device is designed to withstand the harsh conditions of the automotive environment, featuring protection against voltage transients, electrostatic discharge (ESD), and other voltage disturbances.
• Compliance: It complies with the ISO 11898-2 (2016) high-speed CAN physical layer standard, ensuring compatibility with other CAN devices and systems.
• Low Power Mode: Includes a low-power mode with a remote wake-up feature, which is essential for reducing power consumption in battery-operated systems.
• Differential Signaling: Employs differential signaling to provide robust communication that is resilient to electromagnetic interference (EMI).
• Thermal Protection: Equipped with thermal shutdown protection to prevent damage from overheating.
• Bus-Fault Protection: Offers bus-fault protection of ±58V, safeguarding the transceiver against faults on the CAN bus lines.

Applications

With its robust feature set, the TCAN1051DRQ1 is an excellent choice for a wide range of automotive applications, including:

• Powertrain systems
• Chassis control modules
• Body control modules
• Advanced driver-assistance systems (ADAS)
• Infotainment and telematics systems

Package and Quality

The TCAN1051DRQ1 is available in an 8-pin SON package, which is not only space-saving but also offers excellent thermal performance. It is qualified for automotive applications, meeting the stringent quality standards of AEC-Q100 Grade 1. This ensures that the transceiver can operate reliably across a wide temperature range of -40°C to +125°C, making it suitable for various automotive climates and conditions.

For detailed technical specifications, application circuits, and installation guidelines, refer to the TCAN1051DRQ1 datasheet provided by Texas Instruments.
