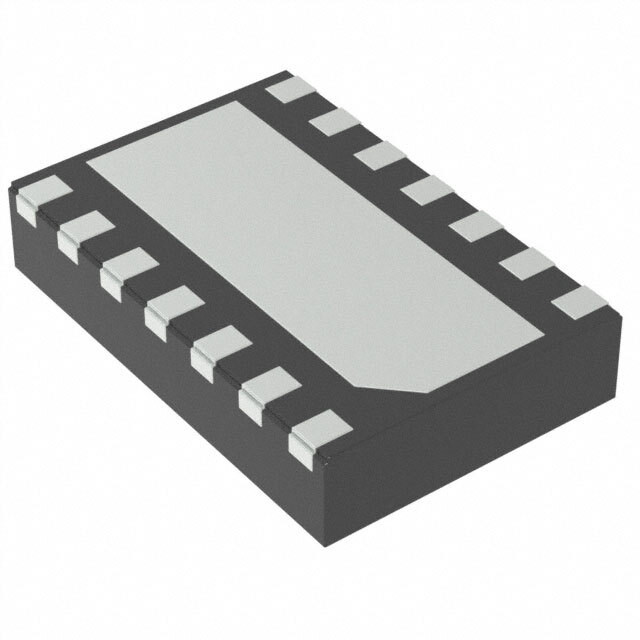

Introducing the TCAN1043DMTTQ1 from Texas Instruments

The TCAN1043DMTTQ1 is a high-performance automotive CAN transceiver that provides an interface between a Controller Area Network (CAN) protocol controller and the physical two-wire CAN bus. This device is designed specifically to meet the rigorous demands of automotive applications and is part of Texas Instruments' robust product offerings for vehicular communication systems.

With its industry-standard 8-pin DMT package, the TCAN1043DMTTQ1 is optimized for 12V and 24V systems, making it an ideal choice for a broad range of automotive applications, including powertrain, body control modules, and advanced driver assistance systems. The device features a wide bus-fault protection of ±58V, and an extended common-mode range of -12V to +12V, which exceeds the ISO11898 standard of -2V to +7V, ensuring reliable data transmission even in electrically noisy environments.

The TCAN1043DMTTQ1 also boasts a number of protective features that safeguard the transceiver against damage. These include thermal shutdown, over-current protection, and an integrated fail-safe mode that ensures a recessive bus level when the inputs are left floating. Additionally, the transceiver supports silent mode (also known as listen-only mode) which disables the transmitter while allowing the CAN controller to listen to the network without influencing it. This is particularly useful for diagnostic and failure mode operations.

One of the standout features of the TCAN1043DMTTQ1 is its low quiescent current, which is crucial for power-sensitive applications. The device also supports CAN FD (Flexible Data-rate), which allows for higher data rates and improved data throughput compared to traditional CAN networks. This makes the TCAN1043DMTTQ1 a forward-compatible solution that is ready to accommodate future enhancements in vehicular communication protocols.

In summary, the TCAN1043DMTTQ1 from Texas Instruments is a robust, feature-rich CAN transceiver designed to meet the stringent requirements of the automotive industry. With its advanced protection features, compatibility with high-speed CAN FD networks, and low-power operation, this transceiver is well-suited for a variety of applications that demand reliable and efficient communication under harsh conditions.
