Texas Instruments TCA6416PWR I/O Expander

The TCA6416PWR from Texas Instruments is a versatile integrated circuit designed to expand the I/O capabilities of microcontrollers with limited GPIOs. This 16-bit I/O expander operates under the I²C bus communication protocol, allowing for seamless integration into existing systems with minimal hardware configuration.

This device features two 8-bit Configuration, Input, Output, and Polarity Inversion registers to facilitate easy data manipulation and GPIO configuration. The TCA6416PWR is perfect for applications that require additional I/Os such as keypad interfaces, signal status monitoring, or controlling multiple peripherals. Its wide VCC operation range from 1.65V to 5.5V makes it suitable for interfacing with both 3.3V and 5V logic levels, ensuring compatibility with a variety of microcontrollers and digital systems.

Key features of the TCA6416PWR include:

• 16-bit I/O expander with I²C bus interface
• Operating power-supply voltage range of 1.65V to 5.5V
• 5V tolerant I/Os to accommodate interfacing with higher voltage logic levels
• 400-kHz fast I²C bus
• Interrupt output to the host when input state changes (INT)
• Power-up with all channels configured as inputs
• Low stand-by current consumption
• ESD protection exceeds JESD 22

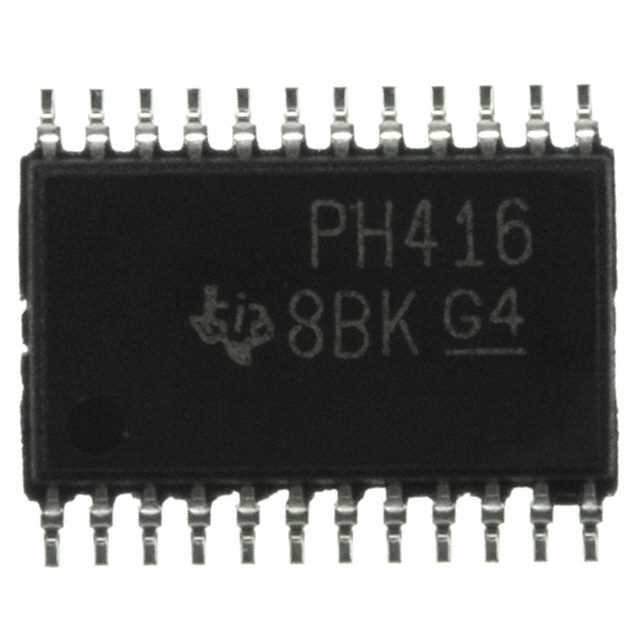

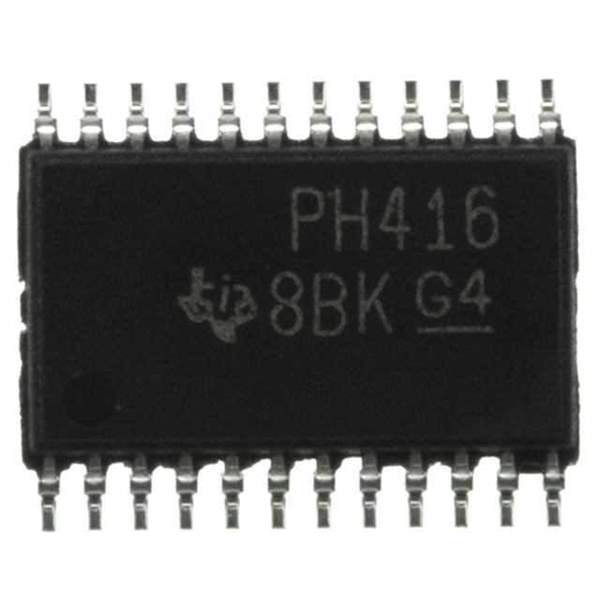

The TCA6416PWR comes in a TSSOP (Thin Shrink Small Outline Package) with 24 pins, providing a space-saving solution for PCB designs. Its interrupt output feature allows the host microcontroller to be notified of input changes without the need to continuously poll the expander, leading to more efficient power management and system responsiveness.

For designers and engineers looking to enhance their systems with additional I/Os without compromising on space or power efficiency, the TCA6416PWR from Texas Instruments is an excellent choice. It offers a reliable and flexible solution for a wide range of applications, from consumer electronics to industrial control systems.

With its robust feature set and ease of use, the TCA6416PWR is an essential component for expanding the functionality of compact digital systems while maintaining a low power footprint.
