Texas Instruments TCA6416AZQSR I/O Expander

The TCA6416AZQSR is a high-performance, 24-pin I/O expander from Texas Instruments designed to provide additional digital I/O options for microcontroller-based systems. This component is ideal for applications where I/O pin expansion is necessary, such as in industrial control, home automation, and embedded systems.

Key Features

• I/O Expansion: The TCA6416AZQSR offers 16-bit I/O expansion for the two-line bidirectional I²C bus (or SMBus) to provide more flexibility in system design.
• Operating Voltage: It operates within a voltage range of 1.65V to 5.5V, making it suitable for interfacing with both low-voltage and standard logic level devices.
• Interrupt Output: An interrupt output is available and can be configured to alert the host controller when input state changes occur, thereby reducing the need for the controller to poll the expander.
• Configurable Polarity: Input and output configuration registers allow the polarity of the I/O to be inverted if necessary, providing additional flexibility for system design.
• Power-Up States: The device ensures that all I/Os are configured as inputs at power-up to prevent unintended outputs that could cause system issues.

Applications

The TCA6416AZQSR is highly versatile and can be used in a variety of applications, including:

• Server infrastructure
• Factory automation and process control
• Consumer electronics
• Extended keypad or button arrays
• Signal aggregation

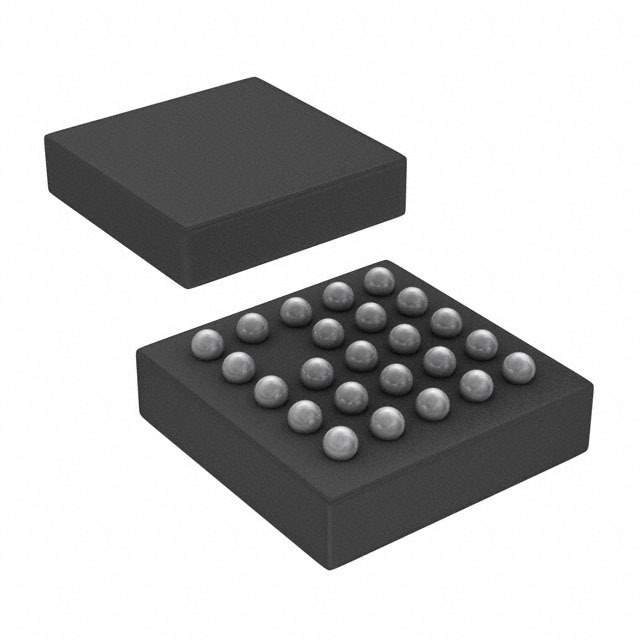

Package and Quality

The Texas Instruments TCA6416AZQSR comes in a compact, surface-mount package that is RoHS compliant and designed for automated assembly processes. It is part of Texas Instruments' commitment to high-quality and reliable components, ensuring long-term performance for critical applications.
