Product Overview: Texas Instruments TAS5132DDVG4

The Texas Instruments TAS5132DDVG4 is a high-performance, integrated stereo digital amplifier power stage designed to deliver premium audio quality in consumer electronics. This advanced audio component is part of TI's PurePath™ Digital technology line, which is renowned for its ability to produce crystal-clear sound while minimizing power loss and heat generation.

Key Features

• High-Efficiency Class-D Operation: The TAS5132DDVG4 operates as a Class-D amplifier, providing efficient power conversion, which results in less heat and extended product life.
• Advanced Modulation Techniques: It utilizes a sophisticated Pulse Width Modulation (PWM) technique that ensures low distortion and high audio fidelity.
• Power Output: The device is capable of delivering up to 25W per channel into an 8-ohm load, providing powerful and dynamic audio performance.
• Integrated Feedback: The inclusion of feedback within the integrated circuit helps to maintain signal integrity and reduce noise, leading to cleaner sound reproduction.
• Thermal and Overcurrent Protection: Built-in protection circuits safeguard the amplifier against excessive temperature and current, enhancing reliability and durability.
• Flexible Power Supply: The TAS5132DDVG4 is designed to work with a wide range of power supplies, supporting various applications and system configurations.

Applications

This digital amplifier is suitable for a variety of applications, including but not limited to:

• Home theater systems
• High-definition televisions
• Compact audio systems
• Active speakers
• Sound bars

Technical Specifications

• Supply Voltage Range: 10V to 26V
• Thermal Shutdown: Yes
• Mounting Type: Surface Mount

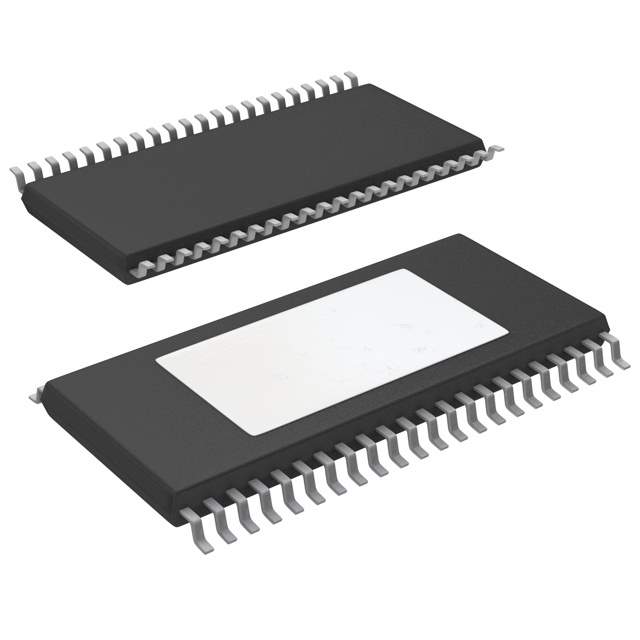

• Package / Case: 44-TSSOP (0.244", 6.20mm Width) with Exposed Pad

The TAS5132DDVG4 is an example of Texas Instruments' commitment to delivering high-quality audio solutions that meet the demands of modern electronics. Whether for a DIY project or a mass-produced consumer product, this digital amplifier power stage is designed to offer outstanding performance and reliability.
