The SNJ54LS373W is a high-performance, octal D-type transparent latch designed and manufactured by Texas Instruments. This integrated circuit is part of the 54LS series and is characterized by its robustness and reliability, making it suitable for a wide array of applications in the military, aerospace, and other industries requiring stringent quality standards.

Key Features

• Logic Type: Octal D-Type Transparent Latches with 3-state outputs.

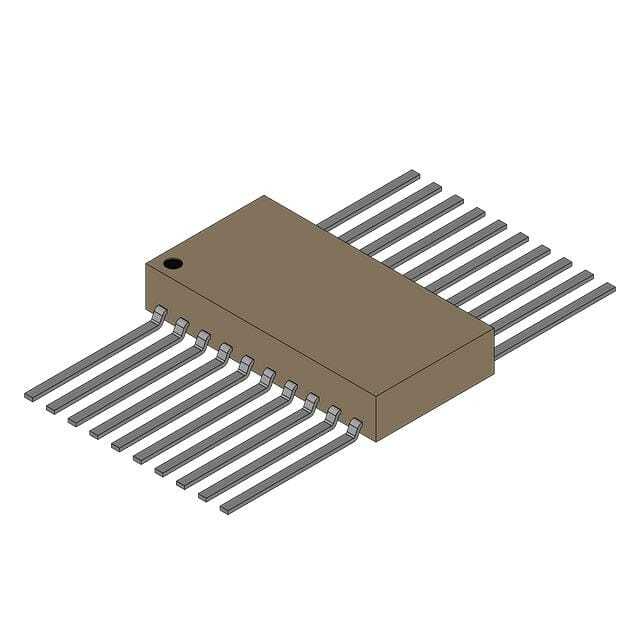

• Package: The device is housed in a durable ceramic flat package (CFP), ensuring high resistance to environmental factors such as temperature and humidity.
• Operating Temperature: The SNJ54LS373W is designed to operate over a wide temperature range, making it suitable for extreme environments.
• 3-State Outputs: The latch features 3-state outputs which can be used in bus organized systems. When the output enable (OE) is high, the outputs are in a high impedance state, allowing for bidirectional data flow.

Performance and Quality

With a commitment to high standards, Texas Instruments ensures that the SNJ54LS373W offers reliable performance. The device's fast propagation delay and setup times are ideal for high-speed operations. Additionally, the SNJ54LS373W is part of Texas Instruments' military-grade product offerings and meets the requirements of the MIL-STD-883 standard for electronic components used in military and aerospace electronic systems.

Applications

The versatile nature of the SNJ54LS373W allows it to be used in various applications, including:

• Buffering and interfacing in digital systems
• Memory address latching
• Data storage and transfer in microprocessor systems
• Industrial control systems
• Communication systems

In conclusion, the SNJ54LS373W from Texas Instruments is a reliable choice for designers looking for a military-grade octal latch with high performance and versatility. Its robust packaging and temperature resilience make it an excellent choice for demanding applications where quality cannot be compromised.
