Product Overview: SN75DP130DSRGZR by Texas Instruments

The SN75DP130DSRGZR is a high-performance DisplayPort to LVDS bridge device from the reputable semiconductor manufacturer, Texas Instruments. Designed to facilitate the connection between DisplayPort-enabled sources and LVDS displays, this integrated circuit provides a seamless and efficient solution for video signal conversion and transmission.

This innovative component supports a dual-mode DisplayPort (DP++) input and a single-link LVDS output, making it an ideal choice for a wide range of applications, including industrial displays, medical monitors, and consumer electronics such as laptops and televisions. The SN75DP130DSRGZR is equipped with advanced features that ensure high-quality video output and reliable performance.

Key Features:

• DisplayPort 1.1a Compliant: The device adheres to the DisplayPort 1.1a standard, ensuring compatibility with a vast array of DisplayPort sources.
• LVDS Interface: It provides a high-speed Low Voltage Differential Signaling (LVDS) output that supports a wide range of pixel clocks, suitable for various display resolutions.
• Enhanced EMI Performance: The SN75DP130DSRGZR is designed to minimize electromagnetic interference (EMI), a critical feature for maintaining signal integrity in noise-sensitive applications.
• Flexible Configuration: With configurable options through pin-strapping or I2C-compatible interface, the device allows for easy adaptation to specific design requirements.
• Power Management: Efficient power management features help in reducing power consumption during operation, contributing to energy-saving designs.

Applications:

• Industrial Display Systems
• Medical Imaging Monitors
• Laptop and Notebook Computers
• Consumer Electronics

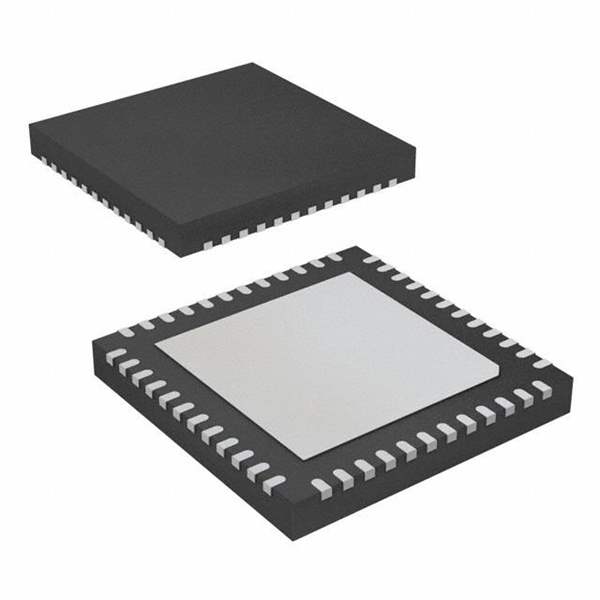

The SN75DP130DSRGZR comes in a compact QFN package, which is well-suited for space-constrained applications. Its design is optimized for ease of PCB routing and minimal external components, reducing overall design complexity and time to market.

With Texas Instruments' commitment to quality and long-term reliability, the SN75DP130DSRGZR represents a robust solution for bridging DisplayPort to LVDS interfaces. Its combination of performance, flexibility, and efficiency makes it a top choice for designers looking to enhance their visual display capabilities.
