The SN74LVC3GU04YZPR from Texas Instruments is a high-performance, triple inverter gate designed for 1.65-V to 5.5-V VCC operation. This device is part of the LVC family, which means it is optimized for low-voltage applications and is capable of interfacing with multiple voltage levels without the need for external components. The SN74LVC3GU04YZPR is available in a compact, lead-free DSBGA package, making it ideal for space-constrained applications.

Key Features:

• Logic Type: Triple Inverter Gate
• Supply Voltage Range: 1.65 V to 5.5 V, accommodating a variety of logic levels and providing design flexibility.
• Logic Level Compatibility: 5 V tolerant inputs enable interfacing with higher voltage logic levels without damage.
• Output Drive Capability: Capable of driving up to 24 mA at the output, ensuring strong signal transmission and driving capability.
• Propagation Delay: Fast propagation delays, typically 3.4 ns at 3.3 V, allow for high-speed operation in critical applications.
• Power Consumption: Low power consumption with a typical ICC of only 10 μA maximum, making it suitable for battery-powered and energy-saving applications.

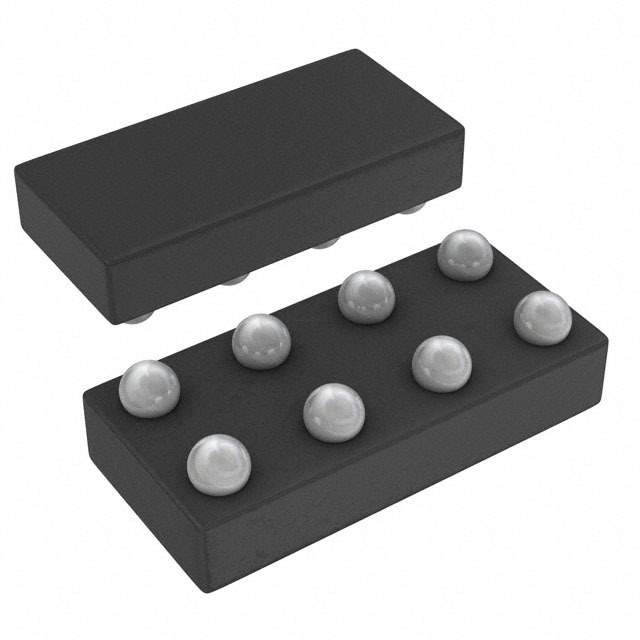

• Package: Supplied in an ultra-small 8-ball DSBGA package (YZP), which minimizes the footprint on PCBs.
• RoHS Compliant: Meets environmental standards, being lead-free and RoHS compliant.

Applications:

The SN74LVC3GU04YZPR is a versatile component that can be used in a wide range of applications, including but not limited to:

• Smartphones and portable electronics where space is at a premium
• Signal processing where high-speed inversion is required
• Interface circuitry where level shifting is necessary
• Embedded systems requiring low power consumption
• General digital logic support circuits

With its combination of low-voltage operation, high-speed performance, and compact packaging, the SN74LVC3GU04YZPR is an excellent choice for designers looking to optimize their digital systems while maintaining a small hardware footprint.
