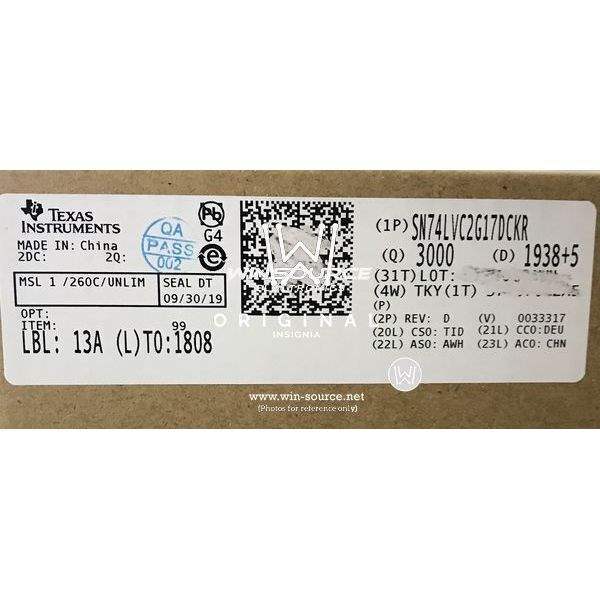

Product Overview: SN74LVC2G17DCKRG4

The SN74LVC2G17DCKRG4 is a dual Schmitt-trigger buffer manufactured by Texas Instruments, designed to provide high-performance, low-voltage, and low-power operation. This device is part of the LVC family, which is known for its robustness and versatility in a wide range of electronic applications.

Key Features

• Logic Type: The device features a dual Schmitt-trigger buffer, which ensures that signals with slow transitions are shaped into sharper, defined ones, making it ideal for transforming noisy inputs into clean digital signals.
• Operating Voltage: It operates at a wide range of supply voltages from 1.65V to 5.5V, allowing for use in various systems without the need for level-shifting circuits.
• Output Drive Capability: The SN74LVC2G17DCKRG4 can drive up to 24mA at the outputs, providing good signal strength for downstream digital logic circuits.
• Low Power Consumption: The device is optimized for low power consumption, making it suitable for battery-operated and power-sensitive applications.
• I/O Tolerance: Inputs are 5.5V tolerant, enabling the device to interface with higher voltage logic levels without damage.
• Propagation Delay: It offers a fast propagation delay, which is essential for high-speed applications where timing is critical.
• Package: The SN74LVC2G17DCKRG4 comes in an industry-standard SC70-6 package, which is compact and space-saving, ideal for high-density electronic assemblies.

Applications

The dual Schmitt-trigger buffer is suitable for a variety of digital applications, including:

• Wave shaping and noise filtering for digital signals
• Signal line drivers in communication and data systems
• Interface logic between different voltage domains
• Portable and battery-powered electronics
• Microcontroller input buffering

Quality and Reliability

Texas Instruments is renowned for their commitment to quality and the SN74LVC2G17DCKRG4 is no exception. Each device undergoes rigorous testing to ensure high reliability and performance consistency. The product is RoHS compliant and is designed to meet or exceed industry standards for environmental and durability requirements.

Whether you are designing a new system or upgrading an existing one, the SN74LVC2G17DCKRG4 from Texas Instruments is a reliable choice for ensuring signal integrity in your digital applications.
