The SN74LVC1G58DRLR is a versatile configurable multiple-function gate from Texas Instruments, designed to provide a range of logical operations within a single chip. This integrated circuit belongs to the 74LVC family, which is known for its low-voltage operation and compatibility with 5V systems, making it ideal for interfacing with both 3.3V and 5V logic levels.

Key Features

• Multiple Logic Functions: This gate can be configured to perform a variety of logical functions including AND, OR, NAND, NOR, XOR, XNOR, and more, by simply adjusting the input connections, providing designers with a high degree of flexibility in a compact footprint.
• Low-Voltage Operation: It operates at a voltage range of 1.65V to 5.5V, which makes it suitable for battery-operated and low-power applications.
• High-Speed: The SN74LVC1G58DRLR offers high-speed performance with a propagation delay typically less than 3.4 ns at 3.3V, ensuring swift response times in critical applications.
• Low Power Consumption: Its low static and dynamic power consumption makes it an energy-efficient choice for modern electronic designs.

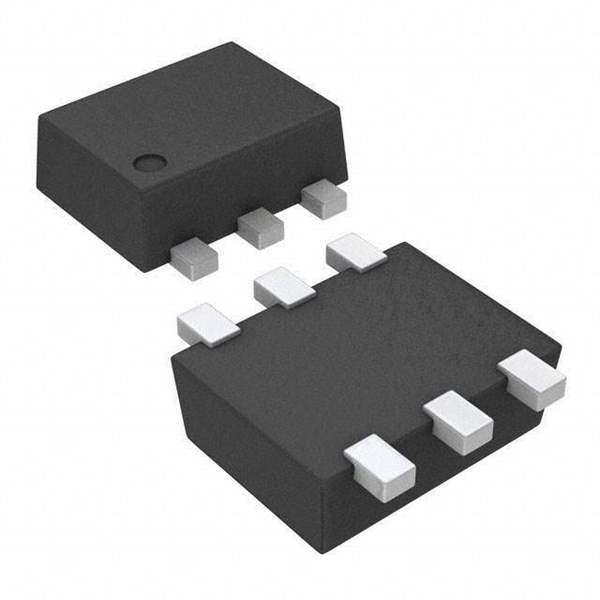

• Compact Package: The device comes in an SOT-5X3 package, which is a small outline transistor package that saves space on printed circuit boards.

Applications

The SN74LVC1G58DRLR's configurable nature allows it to be used in various applications where multiple logic functions are required within a limited space. It is often found in:

• Consumer electronics
• Embedded systems
• Signal processing
• Telecommunications
• Portable devices

Quality and Reliability

Texas Instruments is renowned for its commitment to quality and reliability. The SN74LVC1G58DRLR is manufactured with the industry's highest standards, ensuring that it meets the rigorous demands of both commercial and industrial applications. Each device is subjected to extensive testing to guarantee performance under a wide range of conditions.
