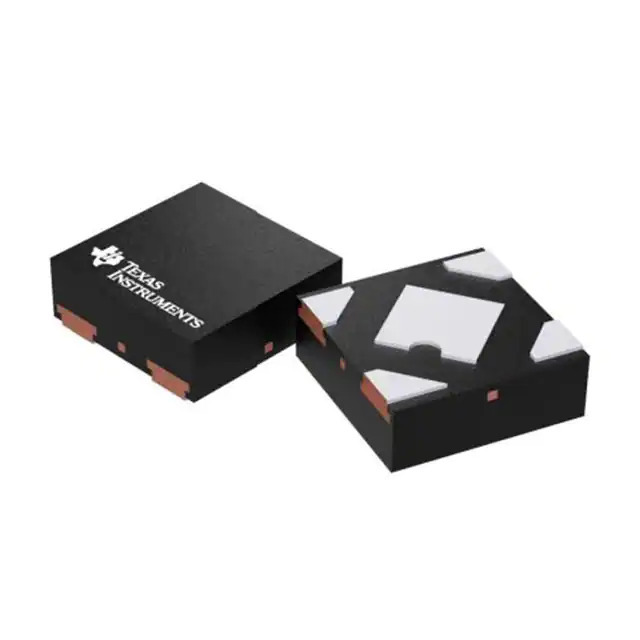

SN74LVC1G32DPWR - Texas Instruments

The SN74LVC1G32DPWR is a single 2-input positive-OR gate from Texas Instruments, designed for optimal performance in digital logic operations. This device is part of the SN74LVC family, which is renowned for its low-voltage operation and compatibility with mixed-voltage systems. The SN74LVC1G32DPWR operates from a voltage range of 1.65 V to 5.5 V, making it versatile for use in various applications ranging from battery-powered devices to industrial equipment.

Key Features:

• Logic Type: 2-Input Positive-OR Gate
• Supply Voltage Range: 1.65 V to 5.5 V
• Logic Level Compatibility: 5 V tolerant inputs allow for use in mixed-voltage logic system designs
• Output Drive Capability: Capable of driving up to 32 mA at the output, allowing for direct drive of LEDs or other loads
• Package: The device comes in a TSSOP (Thin Shrink Small Outline Package), specifically the 8-pin DPWR variant, which is suitable for space-constrained applications
• Operating Temperature: Designed to operate over a broad temperature range from -40°C to 85°C, ensuring reliability across various environmental conditions

Applications:

The SN74LVC1G32DPWR is ideal for a wide array of applications, including:

• Smartphones, Tablets, and Wearable Technology
• Embedded Systems and Microcontroller Logic Support
• Portable and Battery-powered Devices
• Industrial Control Systems
• Data Communication Infrastructure

Quality and Reliability:

Texas Instruments is committed to delivering high-quality and reliable components. The SN74LVC1G32DPWR is no exception, as it is built to meet stringent industry standards. With Texas Instruments' reputation for excellence in manufacturing, users can be assured of the product's performance and longevity in their electronic designs.
