Product Overview: SN74LVC1G02DCK6

The SN74LVC1G02DCK6 is a high-performance, single 2-input NOR gate integrated circuit from Texas Instruments, designed for use in a wide range of electronics applications. This device operates on a supply voltage from 1.65V to 5.5V, making it suitable for interfacing with both 3.3V and 5V systems. The low voltage range also ensures that the device is compatible with modern low-power devices and battery-operated applications.

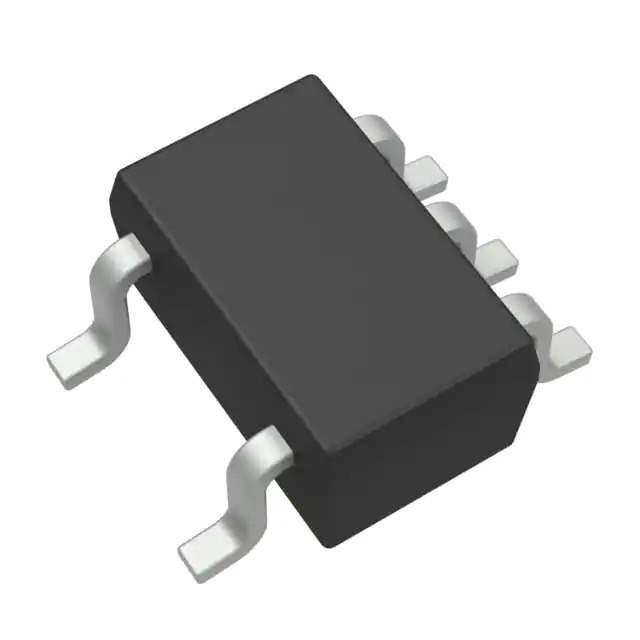

With its small SC70 package, the SN74LVC1G02DCK6 is optimized for space-constrained applications. Despite its compact size, it provides a robust and reliable logic gate function with the high-speed performance characteristic of the LVC family. This makes it an excellent choice for portable electronics, where space and power efficiency are critical.

The device features a 5 mA balanced output drive at 5V, which allows for a good drive capability while maintaining low power dissipation. It also has a very low static power consumption, with an ICC of only 10 μA max. The input logic levels are also compatible with a variety of other logic families, thanks to the LVC family's flexible voltage range.

The SN74LVC1G02DCK6 also includes inputs that are tolerant to 5.5V, even when the device is powered off, ensuring additional protection for the IC during installation or when interfacing with higher voltage systems. Texas Instruments has also designed this component for latch-up performance that exceeds 100 mA per JESD 78, Class II, which provides robustness against over-current conditions.

Key features of the SN74LVC1G02DCK6 include its low noise overshoot and undershoot characteristics, which make it an ideal choice for high-speed signaling environments where signal integrity is paramount. Additionally, the device is characterized for operation from -40°C to 85°C, ensuring reliable performance across a wide range of environmental conditions.

In summary, the SN74LVC1G02DCK6 from Texas Instruments is a versatile, high-performance NOR gate that offers low power consumption, high-speed operation, and a compact footprint, suitable for a diverse array of applications, from consumer electronics to industrial control systems.
