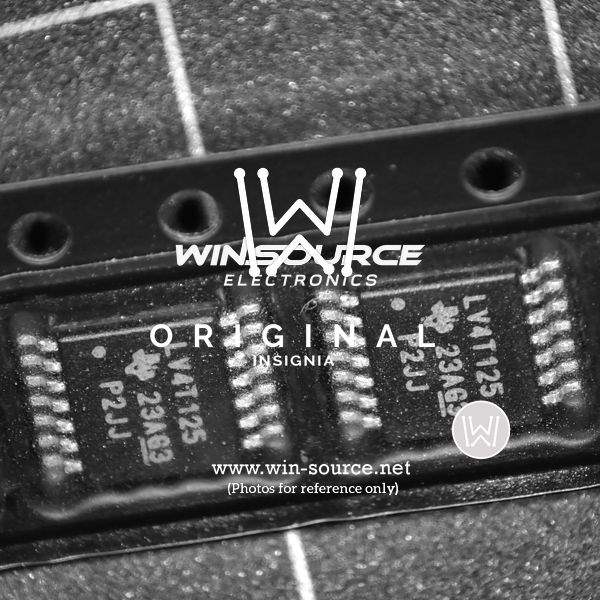

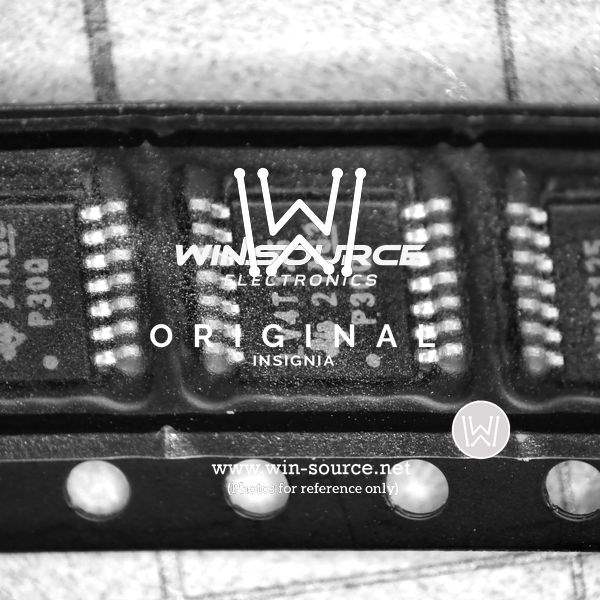

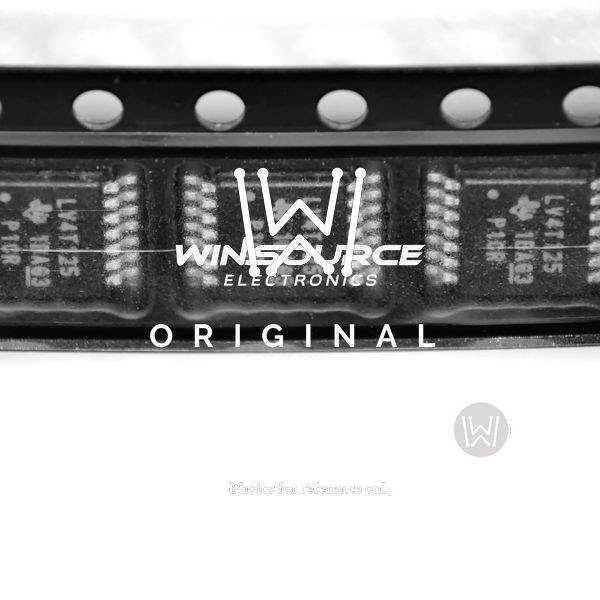

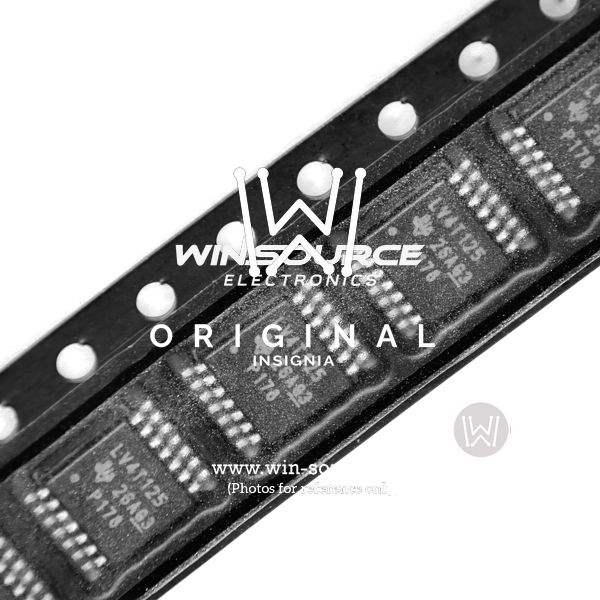

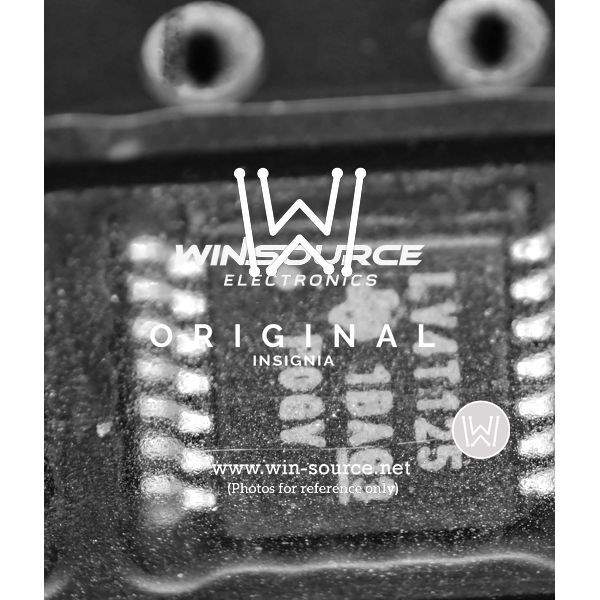

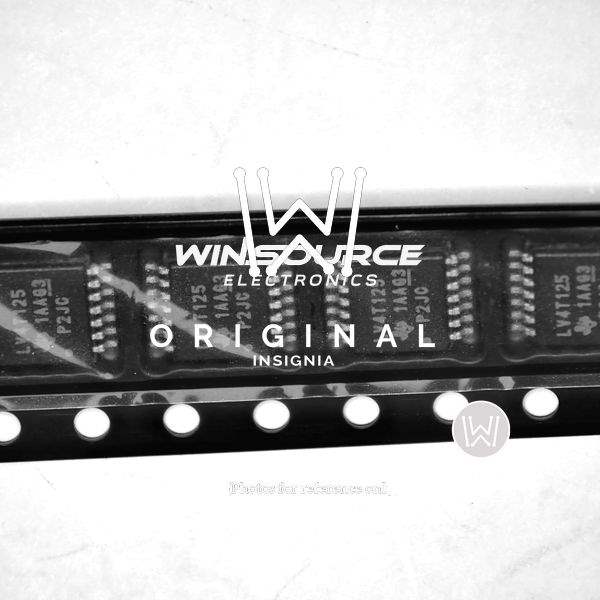

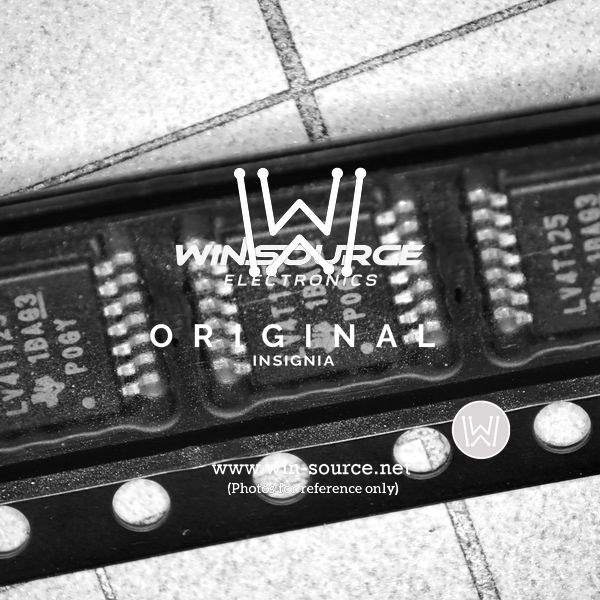

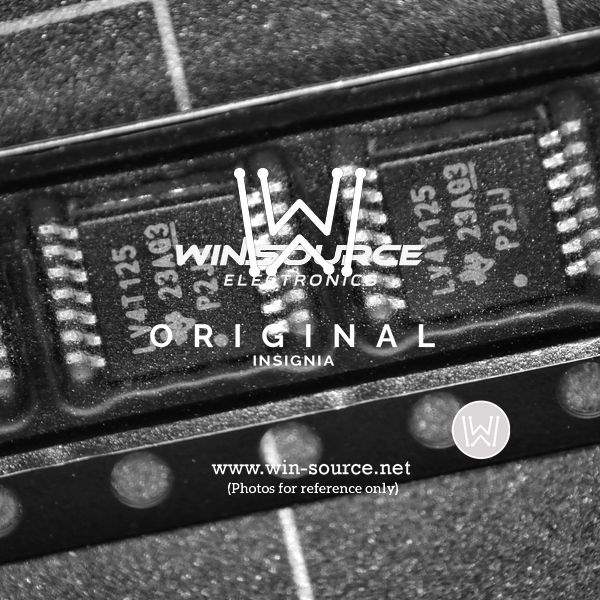

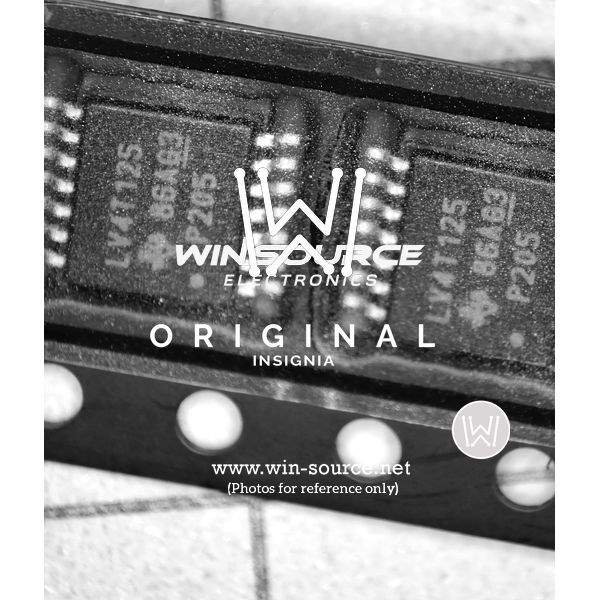

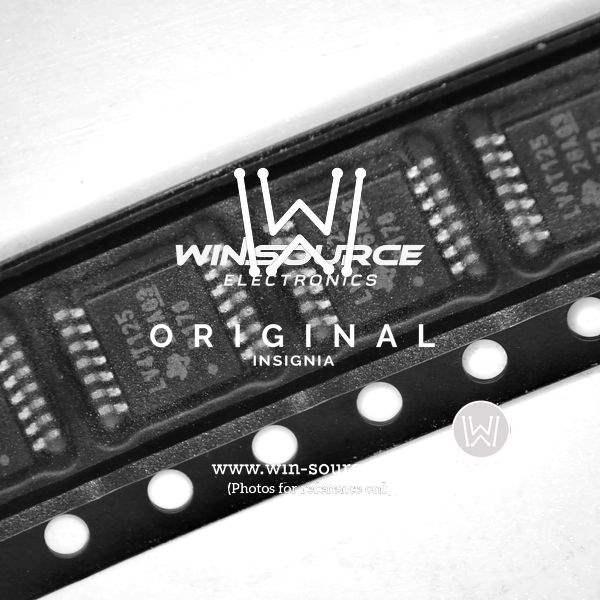

Overview of SN74LV4T125PWR

The SN74LV4T125PWR is a high-performance, quadruple bus buffer gate featuring independent line drivers with 3-state outputs from Texas Instruments. Designed to operate from 1.65 V to 5.5 V, this component is optimized for use in voltage translation applications where a low operational voltage range is necessary. The device is part of the LV4T family, which is known for its low-voltage operation and high-speed interfacing capabilities.

Key Features

• Wide Voltage Range: The SN74LV4T125PWR operates across a wide voltage range from 1.65 V to 5.5 V, making it suitable for interfacing with both 3.3 V and 5 V logic levels without the need for external level shifters.
• High Output Drive: This device can drive up to ±24 mA at the output, allowing for direct drive of heavy loads or for driving long PCB traces with minimal signal degradation.
• 3-State Outputs: The independent 3-state outputs ensure that the device can be connected directly to a bus or data lines, allowing for easy multiplexing and bus management.
• Low Power Consumption: With its low power consumption, the SN74LV4T125PWR is an excellent choice for battery-operated and power-sensitive applications.

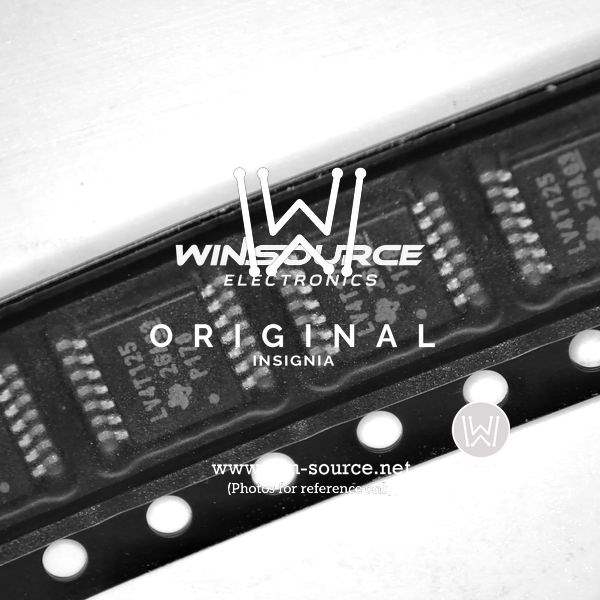

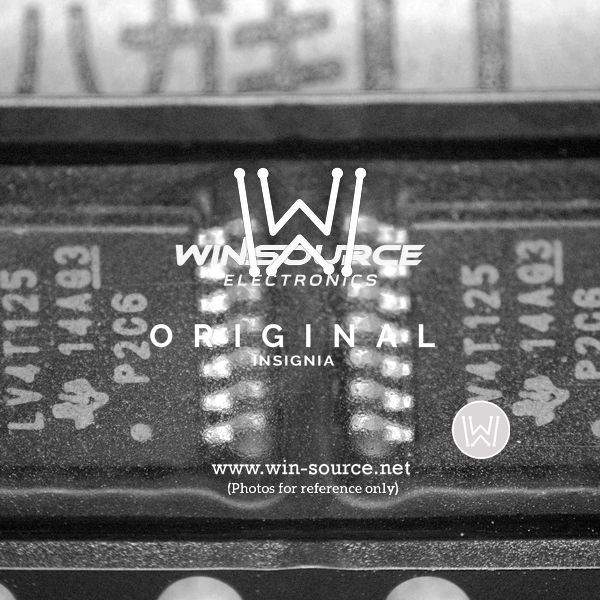

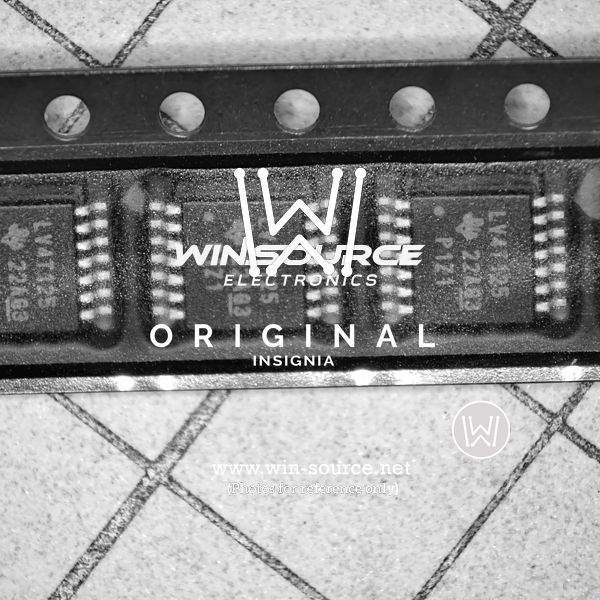

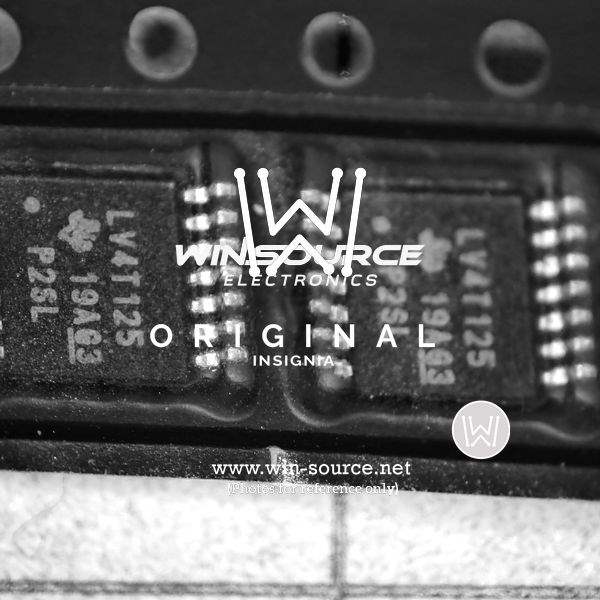

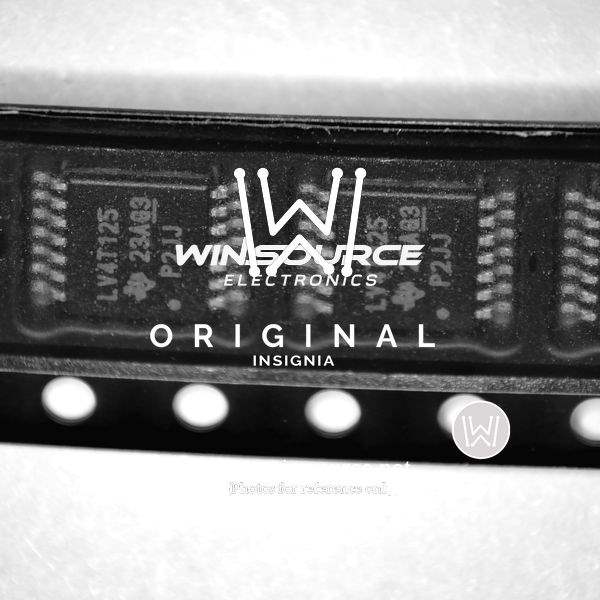

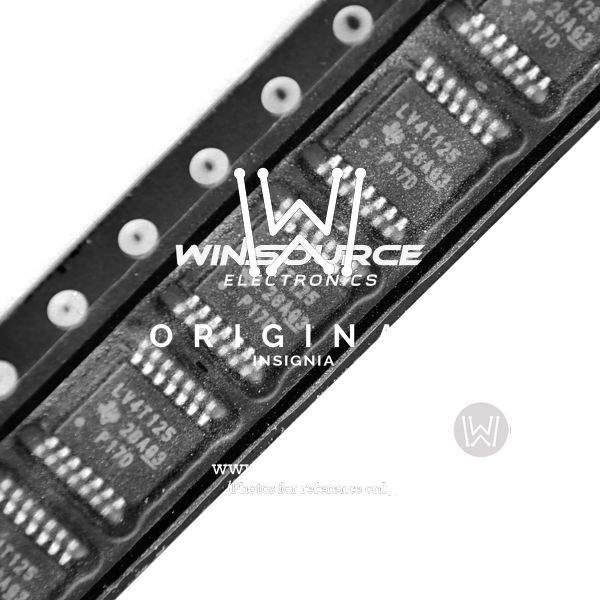

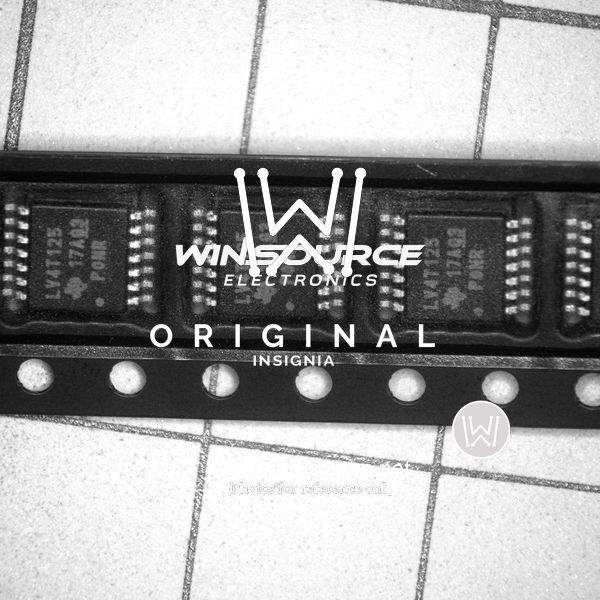

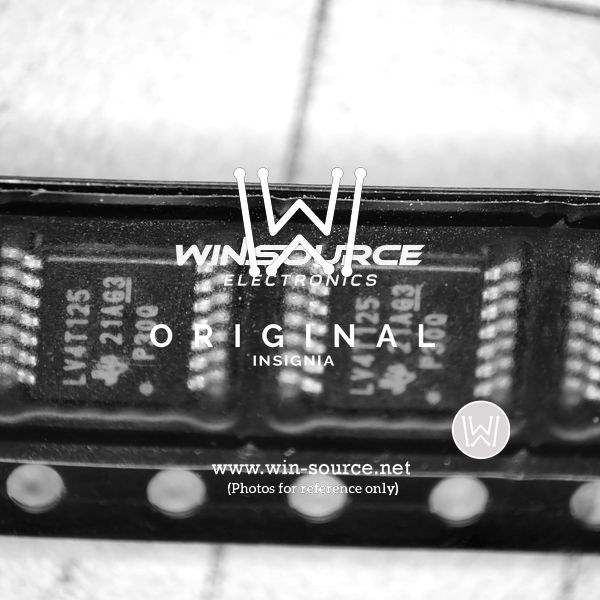

• Multiple Package Options: The device is available in a TSSOP package (PWR suffix), which is ideal for space-constrained applications requiring high-density mounting.

Applications

The SN74LV4T125PWR is versatile and can be used in a variety of applications, including:

• Logic level translation for mixed-voltage systems
• Bus isolation and buffering in multi-master systems
• Memory interfacing and address driving
• Interfacing microprocessors or microcontrollers with peripherals
• Signal gating and multiplexing for complex logic circuits

As a product of Texas Instruments, the SN74LV4T125PWR is backed by a legacy of quality and reliability. Its robust design and versatile features make it an essential component for designers looking to create flexible and efficient electronic systems.
