Product Overview: SN74LS151DR

The SN74LS151DR is a high-quality digital multiplexer from Texas Instruments, renowned for its precision engineering and performance in digital circuits. This 8-input multiplexer is part of the 74LS logic family and is designed to select one line of data from up to eight sources. The SN74LS151DR is an essential component for various applications, including data routing, signal gating, and as a function generator in complex digital systems.

Key Features

• Logic Type: Multiplexer
• Number of Circuits: 1
• Number of Inputs: 8
• Number of Outputs: 1
• Output Type: Differential
• Function: Data Selector/Multiplexer
• Operating Temperature Range: 0°C to 70°C
• Mounting Type: Surface Mount

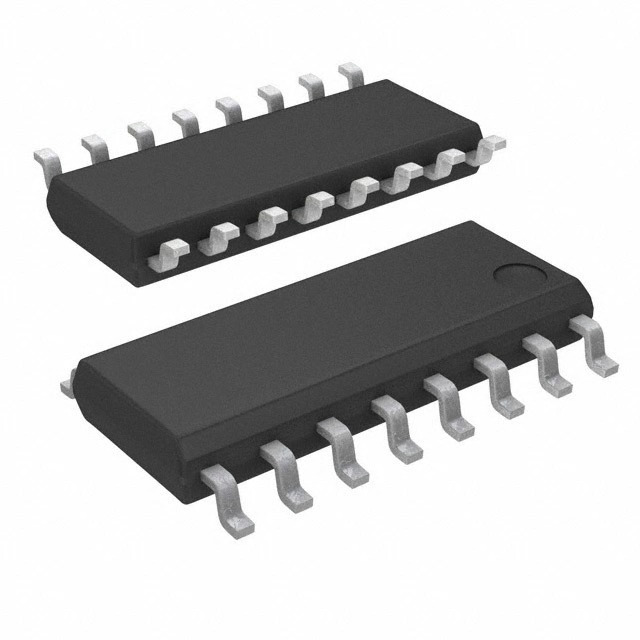

• Package / Case: SOIC-16
• Propagation Delay Time: 15ns at 5V

Performance and Quality

The SN74LS151DR is built to offer high-speed performance with a typical propagation delay time of 15ns at a 5V supply voltage, ensuring swift and reliable data selection. The device operates within the industrial temperature range of 0°C to 70°C, making it suitable for a wide array of environments and applications.

Applications

This multiplexer is highly versatile and can be used in a variety of digital systems. Common applications include:

• Data routing and signal gating
• Function generation
• Control systems
• Communication systems
• Test equipment and instrumentation

Reliability and Support

Texas Instruments is known for its commitment to quality and reliability. The SN74LS151DR is no exception, as it is manufactured to the highest standards, ensuring consistent performance and durability. Additionally, Texas Instruments provides comprehensive technical support and resources, including datasheets, application notes, and design guides, to assist with the integration of the SN74LS151DR into your projects.

Ordering Information

The SN74LS151DR is available in a SOIC-16 package and is supplied in tape and reel packaging for easy handling and assembly during the manufacturing process. For detailed ordering and product information, please refer to the Texas Instruments website or contact an authorized distributor.
