The SN74HCT02DBLE is a high-performance, quadruple 2-input positive-NOR gate integrated circuit from Texas Instruments, designed for use in a wide range of digital applications. This device is part of the HCT family, which means it is compatible with both TTL and CMOS logic levels, providing designers with a versatile option for mixed-technology environments.

Key Features

• Logic Type: Quadruple 2-Input Positive-NOR Gate

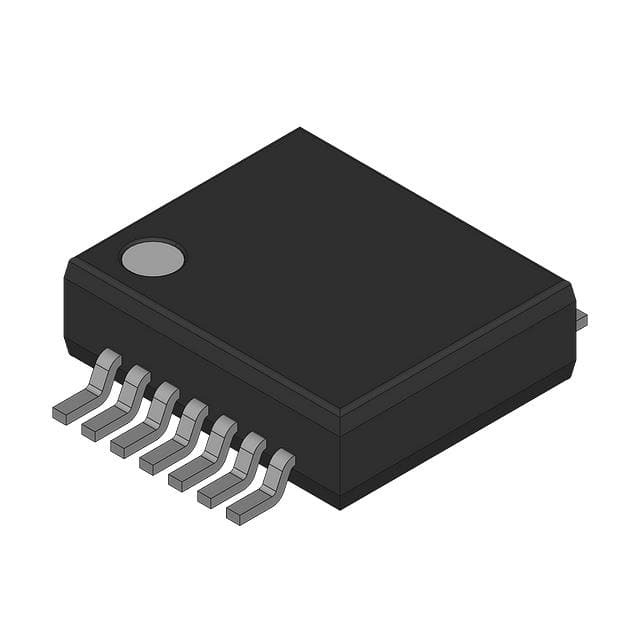

• Package: SSOP (Shrink Small-Outline Package) with 14 pins
• Operating Voltage: 4.5 V to 5.5 V, accommodating standard TTL power supply levels
• Input Compatibility: TTL and CMOS
• Output Drive Capability: 4 mA at 5 V, suitable for driving inputs of several TTL loads
• High Noise Immunity: Characteristic of HCT logic family devices
• Speed: Fast propagation delay times, enabling high-speed operation
• Temperature Range: Specified performance from -40°C to 85°C, suitable for industrial applications

Applications

The SN74HCT02DBLE is ideal for various applications where logic NOR operations are required. It is commonly used in:

• Logic circuits and digital signal processing
• Control systems
• Computing devices
• Networking equipment
• Embedded systems

Quality and Reliability

Texas Instruments is known for its commitment to quality and reliability. The SN74HCT02DBLE is no exception, undergoing rigorous testing to ensure it meets the high standards expected from Texas Instruments products. The device is also RoHS compliant, minimizing the environmental impact by restricting the use of certain hazardous substances in its manufacture.

Conclusion

With its combination of high-speed performance, compatibility with multiple logic levels, and robust industrial temperature range, the SN74HCT02DBLE from Texas Instruments stands out as a reliable choice for engineers and designers looking to implement NOR logic functions in their digital systems.
