SN74HCS157QPWRQ1: High-Performance Multiplexer from Texas Instruments

The SN74HCS157QPWRQ1 is a state-of-the-art quad 2-line to 1-line data selector/multiplexer designed by Texas Instruments, specifically engineered to meet the rigorous demands of automotive and industrial applications. This high-performance integrated circuit is part of TI's robust product line that offers exceptional reliability and functionality.

Constructed with advanced silicon-gate CMOS technology, the SN74HCS157QPWRQ1 offers a significant advantage in terms of power consumption and noise immunity. It operates over a broad voltage range from 2 V to 6 V, making it versatile for various system voltages and ensuring compatibility with a wide range of other logic products.

This multiplexer features four individual 2-line to 1-line selection circuits, each with its own input select and output enable pin. The device allows the transmission of data from two different input sources to a single output line, making it an excellent choice for data routing applications. The SN74HCS157QPWRQ1's design ensures minimal propagation delay, enhancing the performance of high-speed data processing systems.

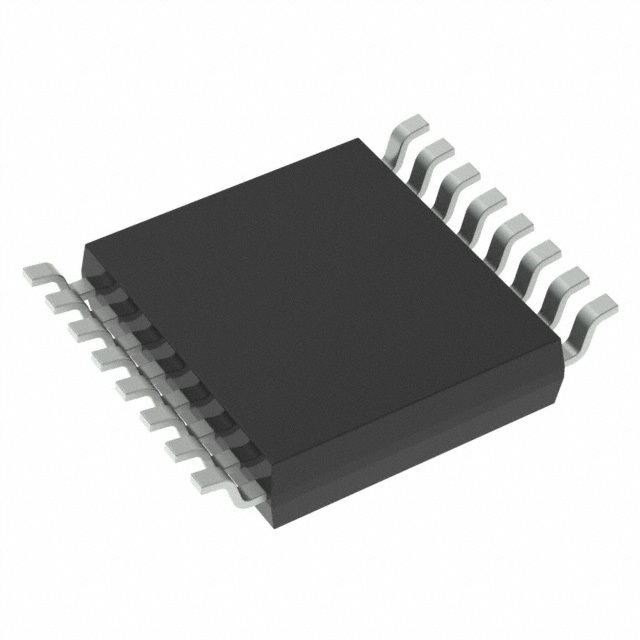

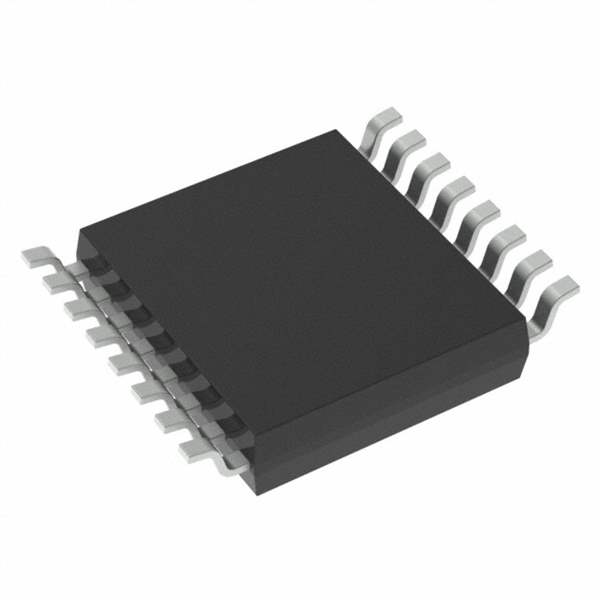

The SN74HCS157QPWRQ1 comes in a TSSOP (Thin Shrink Small Outline Package) form factor, marked with the PWR suffix, which is ideal for space-constrained environments. The package is lead-free and RoHS compliant, reflecting Texas Instruments' commitment to environmental sustainability.

Key features of the SN74HCS157QPWRQ1 include:

• Wide Operating Voltage Range: 2 V to 6 V
• Low Power Consumption: ICC is 20 μA Max
• Low Noise: VOLP (Output Ground Bounce) <0.8 V at VCC = 4.5 V, TA = 25°C
• High On-Off Output Voltage Ratio
• High Degree of Latch-Up Resistance
• Automotive Grade Product: AEC-Q100 Qualified

With its robust design and high-level performance features, the SN74HCS157QPWRQ1 is an ideal choice for critical signal routing applications in automotive infotainment systems, advanced driver assistance systems (ADAS), and other high-reliability industrial and consumer electronics. Texas Instruments provides comprehensive technical support and documentation, ensuring that integrating the SN74HCS157QPWRQ1 into your design is as seamless as possible.
