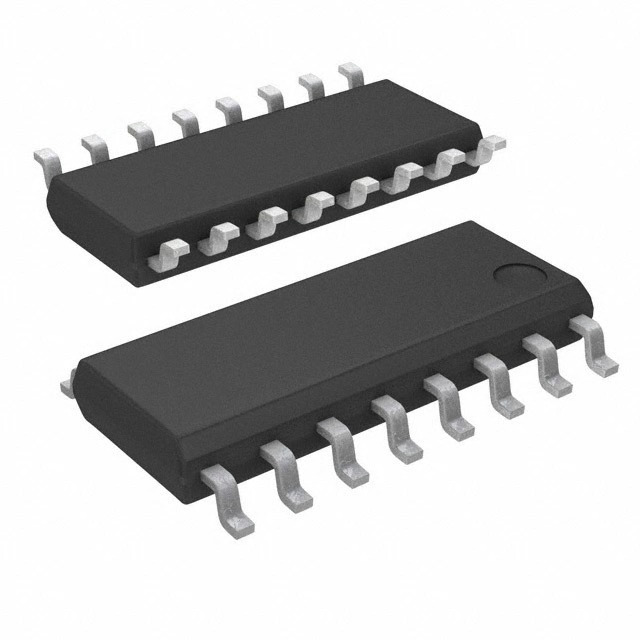

The SN74HC595D from Texas Instruments is a high-performance, 8-bit shift register that features a serial-in, parallel-out design, with an additional serial output to enable cascading of multiple devices. This integrated circuit is part of the 74HC series, known for its compatibility with CMOS and TTL logic levels and is designed for use in a wide range of digital applications.

Key Features:

• 8-Bit Serial-In, Parallel-Out Shift: Allows for the conversion of serial data into parallel data, making it ideal for expanding the number of outputs in microcontroller-based projects.
• 3-State Output Registers: Each of the eight outputs can be set to two logic levels or put in a high-impedance state, providing versatility in interfacing with other logic families or driving loads.
• Wide Operating Voltage Range: Operates from 2V to 6V, providing compatibility with various logic levels and ensuring reliable operation in a broad range of applications.
• High-Current Output Drive: Capable of driving up to 15 mA at 5V, allowing it to power LEDs and other low-power devices directly.
• Edge-Triggered Clock Input: The shift register updates on the rising edge of the clock input, enabling precise control of data timing.
• Output Enable (OE) and Clear (CLR) Inputs: Provide additional control over the output states and allow for the clearing of the register for initialization or in response to system errors.

Applications:

The SN74HC595D is incredibly versatile and can be used in a variety of digital systems including:

• LED displays and LED matrices
• Digital control circuits
• Serial-to-parallel data conversion
• Input/output port expansion
• Signal routing and distribution

With its robust design and ease of use, the SN74HC595D is a staple component for engineers and hobbyists alike seeking to expand the output capabilities of their microcontroller systems without significantly increasing the number of pins used in their designs.
