The SN74AUC2G125YZPR is a high-performance, dual-line buffer gate with 3-state outputs from Texas Instruments, designed to facilitate the creation of non-inverting buffer based systems. This integrated circuit is part of TI's advanced ultra-low-voltage CMOS family and is ideal for down-translation in mixed 3.3-V/2.5-V or 2.5-V/1.8-V voltage systems.
Key Features
- Operational Voltage Range: The device operates at a very low voltage range of 0.8 V to 2.7 V, making it suitable for battery-operated and low-power applications.
- High Speed: With a typical tpd of 2.9 ns at 2.3 V, the SN74AUC2G125YZPR provides high-speed operation, which is crucial for high-frequency signal buffering.
- Low Power Consumption: It features a low ICC of 10 µA maximum, further conserving power in portable and power-sensitive designs.
- Drive Capability: The device can drive up to 24 mA at the outputs, providing good signal integrity and driving capacity.
- ESD Protection: Enhanced electrostatic discharge (ESD) protection is provided, with the inputs and outputs capable of withstanding ±8 kV human-body model (HBM) and ±500 V charged-device model (CDM).
Applications
The SN74AUC2G125YZPR is versatile and can be used in a variety of applications, including:
- Mobile Phones
- PDAs and Handheld Devices
- Portable Media Players
- Data Communication Systems
- Signal Buffers in High-Speed Systems
Package and Quality

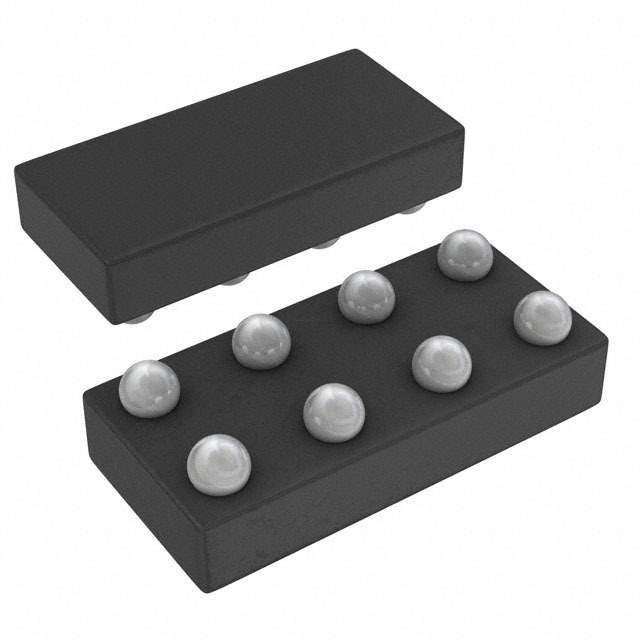

Encased in a compact DSBGA package, the SN74AUC2G125YZPR is designed for space-constrained applications. The device is provided in tape and reel packaging, allowing for ease of integration into automated manufacturing processes. Texas Instruments is committed to maintaining the highest quality and reliability standards, ensuring that this buffer gate meets the stringent requirements of the electronics industry.
For detailed specifications, application notes, and support resources, please refer to the official Texas Instruments product page and datasheets.
