Product Overview: SN74ALS10ADBR by Texas Instruments

The SN74ALS10ADBR is a high-performance integrated circuit from Texas Instruments, renowned for its precision and reliability in the electronics industry. This device belongs to the 'ALS' series, which stands for Advanced Low-Power Schottky, indicating that it is designed to offer both speed and energy efficiency.

Key Features

• Logic Type: The SN74ALS10ADBR is a triple 3-input positive-NAND gate. This means it contains three independent NAND gates, each with three inputs, within a single chip.

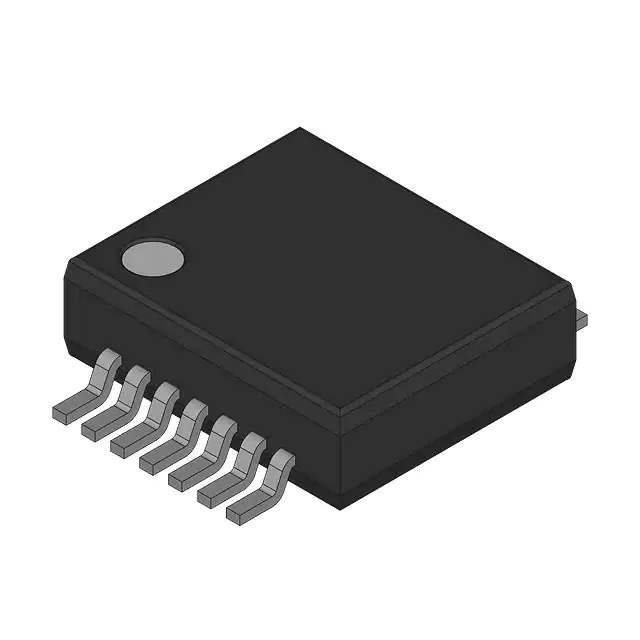

• Package: The device is housed in a SSOP (Shrink Small Outline Package) DBR-type package, which is surface-mountable and offers a reduced footprint on printed circuit boards (PCBs).
• Pin Count: It consists of 14 pins, which include power, ground, inputs, and outputs for each of the three gates.
• Supply Voltage: It operates at a nominal supply voltage of 5V, making it compatible with TTL (Transistor-Transistor Logic) power levels.
• Operating Temperature: The SN74ALS10ADBR is designed to function over a wide range of ambient temperatures, typically from 0°C to 70°C, ensuring stable performance across various environmental conditions.

Applications

The SN74ALS10ADBR is versatile and can be used in a multitude of electronic applications. Some common uses include:

• Logic function generation
• Signal processing
• Complex logic circuit implementation
• Control systems
• Computing devices

Quality and Reliability

As with all Texas Instruments products, the SN74ALS10ADBR is manufactured to meet high standards of quality. It undergoes rigorous testing to ensure it meets the industry's reliability criteria. Customers can trust this component for use in critical and long-term applications.

Environmental Compliance

Furthermore, the SN74ALS10ADBR is compliant with RoHS (Restriction of Hazardous Substances) directives, which means it is manufactured with a commitment to environmental safety by reducing the presence of certain hazardous materials.

In conclusion, the SN74ALS10ADBR from Texas Instruments is a testament to the company's dedication to providing advanced, energy-efficient, and reliable components for the modern electronics market.
